Sandvik Coromant SANC 6427355

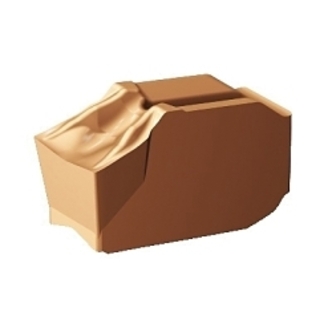

Sandvik Coromant 6427355 CoroCut QD Parting Insert, ANSI Code: QD-NF-0250-0001-CF 1125, F QD-N Insert, Material Grade: K, M, N, P, S, 0.0984 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide

UNSPSC:
Manufacturer PN: 6427355
$27.34 EA
Factory Order
Estimated to ship in 7 days
QTY:


Sandvik Coromant Parting Insert, Series: CoroCut QD, QD-N Insert, F Insert, 0.0984 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.122 in Thickness, 0.393 in Length, CF Chipbreaker, 0.006 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: QD-NF-0250-0001-CF 1125, ISO Code: QD-NF-0250-0001-CF 1125, Ambidextrous Hand, Carbide, PVD-TiCrAlN+TiAlN Coated, Material Grade: K, M, N, P, S

Specifications

ApplicationFinishing Applications
ANSI CodeQD-NF-0250-0001-CF 1125
ChipbreakerCF
Corner Radius0.006 in
Cutting Width0.0984 in
FinishPVD-TiCrAlN+TiAlN Coated
Hand of InsertAmbidextrous
Insert SizeF
Insert StyleQD-N
ISO CodeQD-NF-0250-0001-CF 1125
Lead Angle0 deg
Lead Angle DirectionNeutral
Length0.393 in
Manufacturers Grade1125
MaterialCarbide
Material GradeK, M, N, P, S
Relief Angle7 deg
SeriesCoroCut QD
Thickness0.122 in
