Sandvik Coromant SANC 7472578

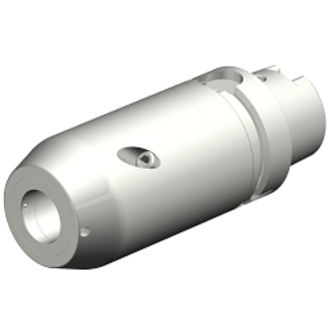

Sandvik Coromant 7472578 CoroChuck 935 High Precision Metric Hydraulic Chuck, HSK Shank, 63 mm Connection, 25 mm Dia Hole, 48 mm Dia Nose, 130 mm Projection
Factory Order
Sandvik Coromant Hydraulic Chuck, High Precision Metric, Series: Steel Hawg, 63 mm, HSK Shank, 25 mm Hole Dia, 48 mm Nose Dia, 130 mm Projection, 100 mm Clamping Depth, System Size Machine Side: 63 mm, ANSI Code: 935-HT06-EF25-130, ISO Code: 935-HT06-EF25-130, Yes Through Coolant (Yes/No)
Features
- A high precision hydraulic chuck with fast, rigid, and secure clamping, that delivers superior pull-out security
- CoroChuck 935 ensures four times the bar diameter clamping length every time
- The EasyFix solution secures correct center height for reduced set-up time, excellent cutting action, and improved insert life time
- With Silent Tools technology
Specifications
ApplicationFor turning operations
ANSI Code935-HT06-EF25-130
Clamping Depth100 mm
Connection Size63 mm
Hole Diameter25 mm
ISO Code935-HT06-EF25-130
Nose Diameter48 mm
Projection130 mm
SeriesCoroChuck 935
Shank TypeHSK
System Size Machine Side63 mm
Through Coolant (Yes/No)Yes
TypeHigh Precision Metric
