Sandvik Coromant SANC 7864401

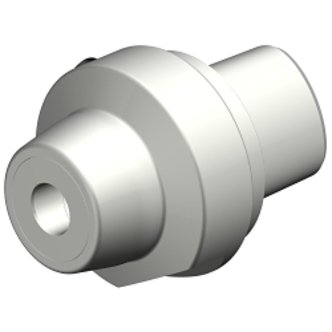

Sandvik Coromant 7864401 CoroChuck 930 High Precision Pencil Design Hydraulic Membrane Chuck, Coromant Capto Shank, C4 Connection, 0.3937 in Dia Hole, 1.0236 in Dia Nose, 1.496 in Projection, For Use With End Mill, Drill, Tap and Reamer
Factory Order
Sandvik Coromant Hydraulic Membrane Chuck, High Precision Pencil Design, Series: CoroChuck 930, C4 Connection, Coromant Capto Shank, 1.575 in Taper, 0.3937 in Diameter Hole, 1.0236 in Diameter Nose, 1.496 in Projection, System Size Machine Side: C4, For Use With: End Mill, Drill, Tap and Reamer, ANSI Code: 930-C4-T-10-038, ISO Code: 930-C4-T-10-038, Yes Through Coolant
Features
- With the best pull out security on the market, this chuck is designed to eliminate vibration for excellent stability and accessibility in all milling and drilling operations
- Based on a hydraulic tool clamping system, CoroChuck 930 can be quickly tightened or released with an optimized torque wrench
- Improving efficiency through quick and easy setups and changes
- No external equipment is required to clamp or unclamp the system
- The chuck holds tolerances within microns to improve tool precision
- Surface finish and productivity
- Precision run-out can be measured at <4 um (157 u-in) at 2.5 x DC
- The machine side coupling is ground as the last operation to guarantee the highest demands on precision
- Balancing according to ISO 16084
- Clamping length can be adjusted with an adjustment screw
Specifications
ApplicationFor milling, drilling and reaming operations where precision, easy handling and high pull-out security are required
ANSI Code930-C4-T-10-038
Connection SizeC4
Hole Diameter0.3937 in
ISO Code930-C4-T-10-038
Nose Diameter1.0236 in
Projection1.496 in
SeriesCoroChuck 930
Shank TypeCoromant Capto
Suitable For Use WithEnd Mill, Drill, Tap and Reamer
System Size Machine SideC4
Taper Size1.575 in
Through Coolant (Yes/No)Yes
TypeHigh Precision Pencil Design
