Edison BUSS ATM-7-1/2

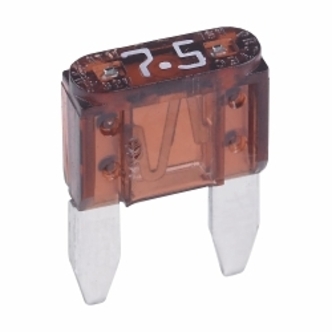

Edison ATM-7-1/2 ATM Fast Acting Fast Blow Miniature Automotive Fuse, 7.5 A, 32 VAC/VDC, 1 kA Interrupt
Invoice description:
Fuse Mini-blade 5/pkg
UPC: 051712814621
UNSPSC:
39121609
Manufacturer PN: ATM-7-1/2
$2.94 EA
Factory OrderEstimated to ship in 26 days
Edison Automotive Fuse, Fast Acting Fast Blow Miniature, Series: ATM, Non-Indicating, Non-Rejection, 7.5 A, 32 VAC/VDC, 1 kA Interrupt, Blade Terminal, Holder Mount, Single Element, 0.642 in Length, 0.43 in Width, 0.15 in D, Plastic, Brown
Features
- A range of UL listed fast acting miniature blade fuses for automotive and low voltage circuits
- Halogen free
- Test points on fuses to speed troubleshooting
- Industry standard color coded by amperage rating
- ATM fuses feature an enclosed element for electrical isolation, corrosion resistance and longer service life
Specifications
ApplicationLow Voltage Control Circuits and Automotive Applications
Amperage Rating7.5 A
ColorBrown
Depth0.15 in
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
Length0.642 in
MaterialPlastic
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
SeriesATM
Terminal TypeBlade
TypeFast Acting Fast Blow Miniature
Voltage Rating32 VAC/VDC
Width0.43 in
Additional Information
WarrantyLimited
Standards/ApprovalJASO D612/SAE J2077/J1171|UL 275A Guide FHXT File
Country of OriginJP
Specification Sheet
