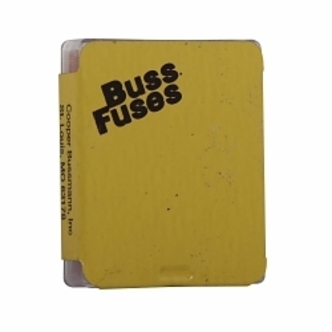

Edison BUSS ATC-4
Edison ATC-4 Fast Acting Fast Blow Automotive Fuse, 4 A, 32 VDC, 1 kA
Invoice description:
Fuse Blade 5/pkg
UPC: 051712703291
Pack Size: 5
UNSPSC:
39121612
Manufacturer PN: ATC-4
$2.38 EA
Factory OrderEstimated to ship in 15 days
Edison Automotive Fuse, Fast Acting Fast Blow, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 4 A, 32 VDC, 1 kA Interrupt, 0.75 to 120 s Response, Blade Terminal, Holder Mount, Single Element, 0.76 in Length, 0.207 in Width, Plastic, Pink
Features
- Industry standard color coding for quick identification of amperage rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
Specifications
ApplicationLow Voltage Control Circuits and Automotive Applications
Amperage Rating4 A
ColorPink
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
Length0.76 in
MaterialPlastic
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time0.75 to 120 s
SeriesATC
Terminal TypeBlade
TypeFast Acting Fast Blow
Voltage Rating32 VDC
Width0.207 in
Additional Information
Standards/ApprovalSAE J1284/JASO 612|SAE J1171|UL File No. E56412|Gu
Country of OriginUS
Line Drawing
