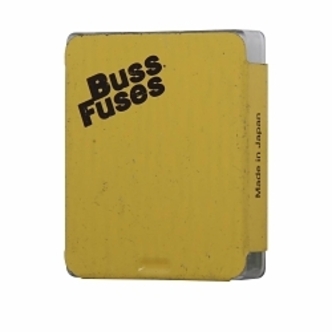

Edison BUSS ATC-30

Edison ATC-30 Fast Acting Fast Blow Automotive Fuse, 30 A, 32 VDC, 1 kA

Invoice description: Fuse Blade 5/pkg

UPC: 051712703284
Pack Size: 5
UNSPSC: 39121612
Manufacturer PN: ATC-30
$10.00 PK
Factory Order
Estimated to ship in 43 days
QTY:


Edison Automotive Fuse, Fast Acting Fast Blow, Series: ATC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 32 VDC, 1 kA Interrupt, 0.75 to 120 s Response, Blade Terminal, Holder Mount, Single Element, 0.76 in Width, 0.207 in Depth, Plastic, Green

  • Features

  • Industry standard color coding for quick identification of amperage rating
  • Tin plated zinc terminals for corrosion resistance and enhanced conductivity
  • Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
  • Lead free and halogen free
  • Test points on specific part/package numbers may speed up circuit troubleshooting
  • UL recognized for use in low voltage control circuits

Specifications

ApplicationLow Voltage Control Circuits and Automotive Applications
Amperage Rating30 A
ColorGreen
Depth0.207 in
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
MaterialPlastic
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time0.75 to 120 s
SeriesATC
Terminal TypeBlade
TypeFast Acting Fast Blow
Voltage Rating32 VDC
Width0.76 in

Additional Information

Standards/ApprovalSAE J1284/JASO 612|SAE J1171|UL File No. E56412|Gu
Country of OriginZZ
