Harvey Tool HARV 55112-C3

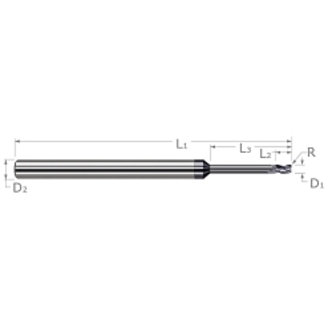

Harvey Tool 55112-C3 Variable Helix End Mill, 0.1875 in Dia Cutter, 1/64 in Corner Radius, 0.285 in Length of Cut, (4) Flutes, 3/16 in Dia Shank, 3 in OAL, AlTiN
Invoice description:
Crem 3/16x.285 .015r 4fl
Manufacturer PN: 55112-C3
$101.04 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 55112-C3, Variable Helix End Mill, 0.1875 in Diameter Cutter, 1/64 in Corner Radius, 3 in Overall Length, 0.285 in Length of Cut, 4 Flutes, Upcut Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 37) reduces chatter and harmonics and increases material removal rates
- Corner radius for improved strength
- Coating provides improved lubricity and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
- Overall Reach 1.5000 in (1-1/2)
Specifications
Corner Radius1/64 in
Cutter Diameter0.1875 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle37 deg
Length of Cut0.285 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
Shank Diameter3/16 in
Shank TypeCylindrical
TypeCenter Cut Stub Length Variable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
