Edison BUSS ATM-10

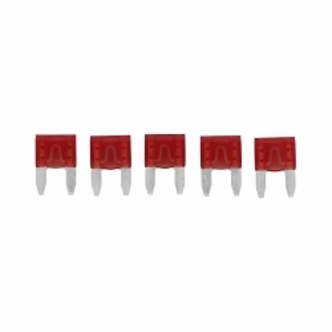

Edison Automotive Fuse, Fast Acting Fast Blow Miniature, Series: ATM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 32 VAC/VDC, 1 kA Interrupt, Blade Terminal, Holder Mount, Single Element, 0.642 in Length, 0.43 in Width, 0.15 in Depth, Plastic, Red

• Features

• A range of UL listed fast acting miniature blade fuses for automotive and low voltage circuits
• Halogen free
• Test points on fuses to speed troubleshooting
• Industry standard color coded by amperage rating
• ATM fuses feature an enclosed element for electrical isolation, corrosion resistance and longer service life
• -40 to 100 deg C, 95 % RH non-condensing is operating temperature
• -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature

Specifications

Additional Information

Documents

• Specification Sheet

• Catalog

• Line Drawing
