MORSE MOR 93076

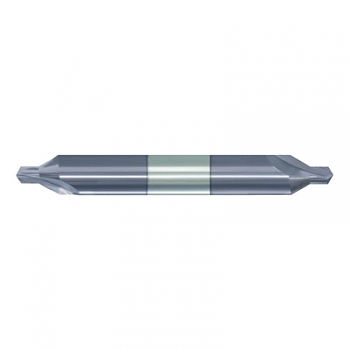

MORSE 93076 5495T Plain Standard Length Combined Drill and Countersink, 0.025 in Drill - Decimal Inch, 90 deg Included Angle, 90 deg Point Angle, Solid Carbide, AlTiN Coated
Invoice description:
No.00 X 90 Deg Carb Ctr Drill
UPC: 686125930769
UNSPSC:
27112812
Manufacturer PN: 93076
$33.08 EA
Factory OrderEstimated to ship in 12 days
MORSE Combined Drill and Countersink, Plain Standard Length, Series: 5495T, 0.025 in Drill - Decimal Inch, #00 Point Diameter, 1/8 in Diameter Body, 1-1/2 in Overall Length, 1/8 in Shank, 90 deg Point, 90 deg Included Angle, Solid Carbide Cutting Edge, Solid Carbide, AlTiN Coated, Applicable Materials: Abrasive Material
Features
- Solid carbide offers excellent rigidity, hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
- Recommended for abrasive materials, difficult to drill materials and increase tool life in production applications
- Designed for drilling center holes in the ends of workpieces to be held between standard 90 deg centers
- ALTiN - aluminum titanium nitride coating increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding
- Often called "center drills"
Specifications
ApplicationFor difficult to drill materials and increase tool life in production applications
Applicable MaterialsAbrasive Material
Body Diameter1/8 in
Cutting Edge MaterialSolid Carbide
Drill Size - Decimal Inch0.025 in
FinishAlTiN Coated
Included Angle90 deg
MaterialSolid Carbide
Overall Length1-1/2 in
Point Angle90 deg
Point Diameter#00
Series5495T
Shank Size1/8 in
TypePlain Standard Length
Additional Information
Country of OriginUS
