MORSE MOR 25045

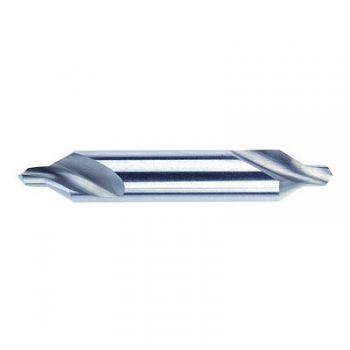

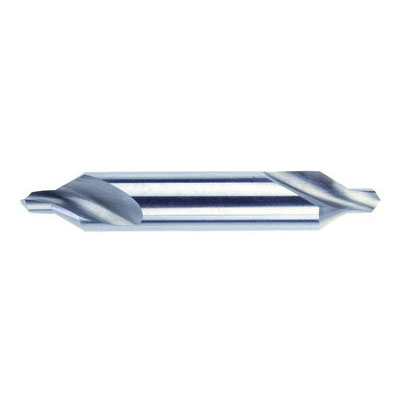

MORSE 25045 1495 Plain Combined Drill and Countersink, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 60 deg Included Angle, 60 deg Point Angle, HSS, Bright
Invoice description:
Bit Drill Center Hss #5 Brt 60 Deg Comb/ctsk
In stock
(1)
MORSE Combined Drill and Countersink, Plain, Series: 1495, 3/16 in Drill Size - Fraction, 0.1875 in Drill Size - Decimal Inch, #5 Point Dia, 7/16 in Body Dia, 2-3/4 in Overall Length, 2 Flutes, 7/16 in Shank, 60 deg Point, 60 deg Included Angle, Right Hand Cutting, HSS Cutting Edge, HSS, Bright
Features
- Designed for drilling center holes in the ends of workpieces to be held between standard 60 deg centers
- Often called "center drills"
Specifications
ApplicationChamfering, Deburring and Countersinking
Body Diameter7/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16 in
FinishBright
Included Angle60 deg
MaterialHSS
Number of Flutes2
Overall Length2-3/4 in
Point Angle60 deg
Point Diameter#5
Series1495
Shank Size7/16 in
TypePlain
Additional Information
Standards/ApprovalISO 9001:2008
Country of OriginUS
