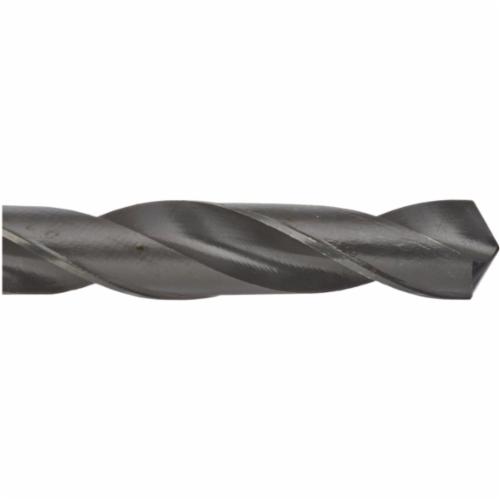

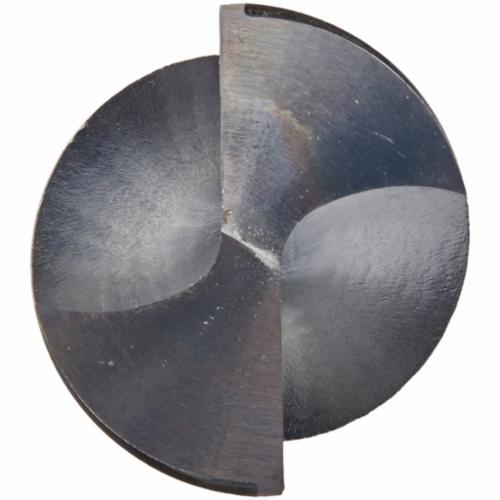

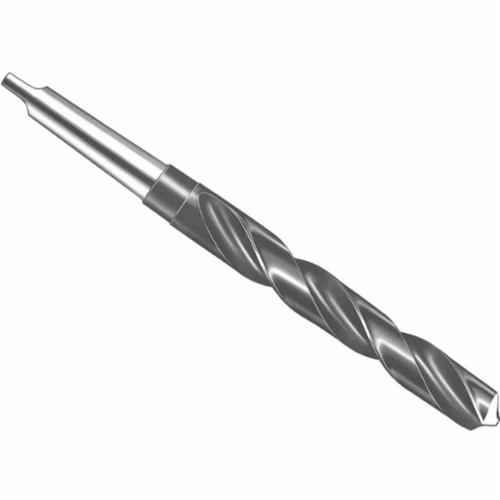

Michigan Drill TRA 203 1-15/16

Michigan Drill 203 1-15/16 General Purpose Single End Taper Shank Drill Bit, 1-15/16 in Drill - Fraction, 1.9375 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS

Invoice description: Taper Shank Drill 1-15/1 6

UPC: 728012115764
UNSPSC: 23241606
Manufacturer PN: 203 1-15/16
$356.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


Michigan Drill Taper Shank Drill Bit, General Purpose Single End, Series: 203, Imperial, 1-15/16 in Drill - Fraction, 1.9375 in Drill - Decimal Inch, 16-5/8 in Overall Length, 10-5/8 in Cutting Depth, Spiral Flute, 10-5/8 in Flute Length, #4 Morse Taper Shank Taper Designation, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Steel

  • Features

  • High speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
  • Morse taper shank allows the tool to be inserted directly into the machines spindle to facilitate high torque applications such as large cut diameters
  • When run in a counterclockwise direction (right hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
  • External coolant delivery

Specifications

ApplicationFor high torque applications such as large cut diameters
Applicable MaterialsSteel
Cutting Depth10-5/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch1.9375 in
Drill Size - Fraction1-15/16 in
FinishBlack Oxide
Flute Length10-5/8 in
Flute TypeSpiral
MaterialHSS
Overall Length16-5/8 in
Point Angle118 deg
Point TypeConventional
Series203
Shank Taper Designation#4 Morse Taper
TypeGeneral Purpose Single End

Additional Information

Standards/ApprovalTAA Compliant
Country of OriginUS
