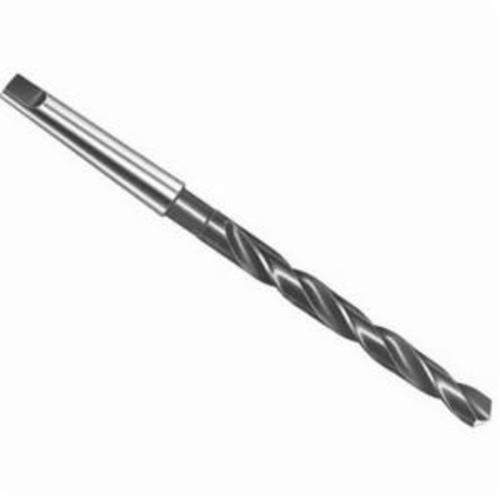

Michigan Drill TRA 200 15/16

Michigan Drill 200 15/16 General Purpose Standard Taper Shank Drill Bit, 15/16 in Drill - Fraction, 0.9375 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS

Invoice description: Taper Shank Drill 15/16

UPC: 728012114026
UNSPSC: 23241606
Manufacturer PN: 201
$57.32 EA
Factory Order
Estimated to ship in 7 days
QTY:


Michigan Drill Taper Shank Drill Bit, General Purpose Standard, Series: 200, Imperial, 15/16 in Drill - Fraction, 0.9375 in Drill - Decimal Inch, 10-3/4 in Overall Length, 6-1/8 in Cutting Depth, Spiral Flute, 6-1/8 in Flute Length, #3 Morse Taper Shank Taper Designation, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Steel

  • Features

  • High speed steel tools offer a combination of hardness and toughness for wear resistance
  • Morse taper shank allows the tool to be inserted directly into the machines spindle
  • When run in a counterclockwise direction spiral fluted tools evacuate chips up and out of the cut to reduce clogging

Specifications

ApplicationFor high-torque applications such as large cut diameters
Applicable MaterialsSteel
Cutting Depth6-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.9375 in
Drill Size - Fraction15/16 in
FinishBlack Oxide
Flute Length6-1/8 in
Flute TypeSpiral
MaterialHSS
Overall Length10-3/4 in
Point Angle118 deg
Point TypeConventional
Series200
Shank Taper Designation#3 Morse Taper
TypeGeneral Purpose Standard

Additional Information

Standards/ApprovalTAA Compliant
Country of OriginUS
