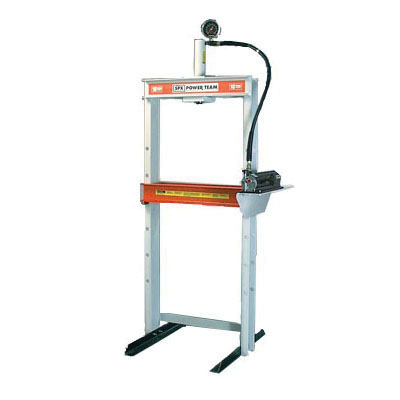

Power Team SPX SPE1010
Power Team SPE1010 SP Series Shop Press, 10 ton Capacity, 1/4 hp, 25-1/4 in L x 28 in W Base, 10-1/8 in L Stroke, H Frame Frame, 67.63 in H, PE102 Electric Pump, 100/10000 psi Pressure
Invoice description:
Press 10 Ton 101/8 Stro Ke Press 10 Ton 101/8 Stroke
Factory Order
Power Team Shop Press, Series: SP Series, 10 ton Capacity, 25-1/4 in Base Length, 28 in Base Width, 67.63 in Height, PE102 Electric Pump, 10-1/8 in Stroke Length, 100/10000 psi Pressure, H Frame Frame, 28 x 28-1/4 in Working Space, 1/4 hp, 2.2 in/min Speed
Features
- "Advance" position holds pressure with motor shut-off
- "Return" position advances cylinder with motor running and returns cylinder with motor shut-off
Specifications
ApplicationFor use in small pressing jobs, repairing small motor armatures, removing and installing gears, bearings, other press-fit parts
Base Length25-1/4 in
Base Width28 in
Capacity10 ton
Frame TypeH Frame
Height67.63 in
Horsepower1/4 hp
Pressure Rating100/10000 psi
Pump TypePE102 Electric
SeriesSP Series
Speed2.2 in/min
Stroke Length10-1/8 in
Working Space28 x 28-1/4 in
Additional Information
IncludesRocker Type off, Momentary on Control Switch, 9561 2-Way/Auto Dump Valve, C1010C Single-Acting Cylinder, Model 222481 Bench Frame, Hydraulic Gauges, Hoses and Fittings
Instruction/installation Manual
