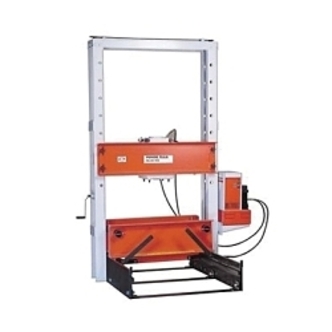

Power Team SPX RB10013S-380

Power Team Roll-Bed Hydraulic Shop Press, 100 ton Capacity, 64-1/4 in Base Length, 50-1/2 in Base Width, 112-5/8 in Height, Electric Pump, 13-1/8 in Stroke Length, H Frame, 64-1/4 x 60-1/2 in Working Space, 3 hp, 35 in/min Advance, 5.8 in/min Pressing Speed

• Features

• Adjustable lower bed width for secure balancing and centering of heavy jobs
• Loosen adjusting bolts to adjust bed from 4 in to more than 27 in
• Movable workhead for off-center pressing jobs, workhead moves on bearings across upper bolster
• Presses can be used at full capacity, regardless of where workhead is placed
• Lifting mechanism simply turn crank handle to raise or lower upper bolster
• Screw mechanism raises or lowers both sides evenly (a heavy duty 1/2 in drill motor can replace handle for automatic adjustment)
• Four locking pins hold bolster in place for pressing

Specifications

Documents

• Specification Sheet
