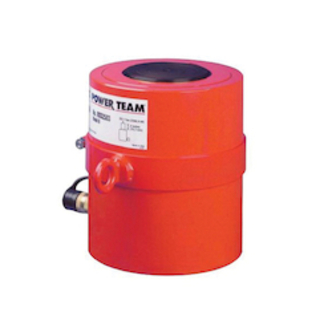

Power Team SPX RSS2503

Power Team RSS2503 Low Height Hydraulic Cylinder, 3 in L Stroke, 250 ton Max Force, Single Acting/Double Acting/Spring Return Function

Invoice description: Cyl 250 Ton 3 Stroke Cyl 250 Ton 3 Stroke

UPC: 662536003575
UNSPSC: 27121602
Manufacturer PN: RSS2503
$10,609.69 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Low Height, Series: RSS, 3 in Stroke Length, 250 ton Maximum Force, Function: Single Acting/Double Acting/Spring Return, 5 deg Swivel, 50.22 sq-in Effective Area Clamped, 150.6 cu-in Oil Capacity Clamped, 14-7/16 in Extended Height, 11-7/16 in Retracted Height, 9956 psi Pressure, 9-7/8 in OD Dimensions

  • Features

  • Power-Tech plated piston rods and gland nuts resist scoring and corrosion
  • Heavy duty return spring (except for double acting models) provides fast piston return and low collapsed height
  • Coupler on 10 thru 50 ton models is angled upward 5 deg for added clearance
  • Grooved piston top keeps load from sliding
  • Cylinders can be dead ended at full capacity
  • Removable carrying handle on 100 ton and 250 ton models

Specifications

Dimensions9-7/8 in OD
Effective Area Clamped50.22 sq-in
Extended Height14-7/16 in
FunctionSingle Acting/Double Acting/Spring Return
Maximum Force250 ton
Oil Capacity Clamped150.6 cu-in
Pressure Rating9956 psi
Retracted Height11-7/16 in
SeriesRSS
Stroke Length3 in
Swivel Angle5 deg
TypeLow Height

Additional Information

Standards/ApprovalASME B30.1
