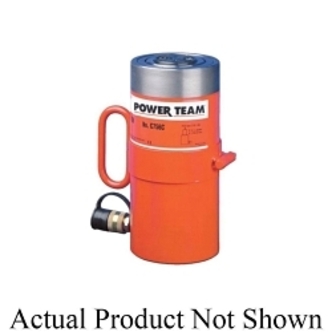

Power Team SPX C1014C

Power Team C1014C Hydraulic Cylinder, 14-1/8 in L Stroke, 10 ton Max Force, Single Acting/Spring Return Function

Invoice description: Cyl 10 Ton 141/8 Stroke K Cyl 10 Ton 141/8 Strokek

UPC: 662536000130
UNSPSC: 27121602
Manufacturer PN: C1014C
$1,393.50 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Series: C Series, 14-1/8 in Stroke Length, 10 ton Maximum Force, Function: Single Acting/Spring Return, 2.236 sq-in Effective Area Clamped, 31.6 cu-in Oil Capacity Clamped, 31.88 in Extended Height, 17-3/4 in Retracted Height, 5/16-18 Body Thread, 10000 psi Pressure, 1.56 in Diameter Mounting Hole, Steel, 2-1/4 in OD Dimensions

  • Features

  • Aluminum bronze bearing reduces wear caused by off-center loads
  • Maximum sized springs speed piston return and increase spring life
  • Collar threads are standard on all C-series models, simplifying fixturing applications
  • Removable rubber boots protect collar threads during transport and storage
  • Chrome plated piston rod resists wear and corrosion
  • A 3/8 in NPTF female half coupler is standard

Specifications

ApplicationGeneral Purpose, Lifting and Pressing
Body Thread Size5/16-18
Dimensions2-1/4 in OD
Effective Area Clamped2.236 sq-in
Extended Height31.88 in
FunctionSingle Acting/Spring Return
MaterialSteel
Maximum Force10 ton
Mounting Hole Diameter1.56 in
Oil Capacity Clamped31.6 cu-in
Pressure Rating10000 psi
Retracted Height17-3/4 in
SeriesC Series
Stroke Length14-1/8 in

Additional Information

Standards/ApprovalANSI|ASME B30.1
