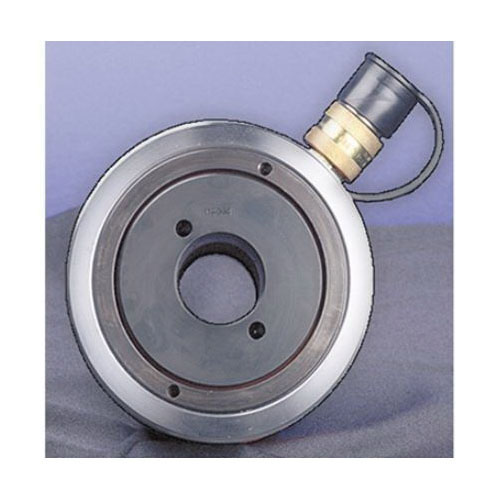

Power Team SPX RH603
Power Team RH603 RH Series Center Hole Spring-Return Single-Acting Hydraulic Cylinder, 60 ton Load, 9-1/4 in H Min, 12-1/4 in H Max, 3 in
Invoice description:
Cyl 60 Ton 3 Stroke Cyl 60 Ton 3 Stroke
Factory Order
Power Team Hydraulic Cylinder, Center Hole Spring-Return Single-Acting, Series: RH Series, 60 ton Load, 9-1/4 in Minimum Height, 12-1/4 in Maximum Height, 3 in Piston Stroke, 6-1/4 in Base Width
Features
- Interchangeable piston head inserts provide versatility of application
- 60 ton single-acting models feature threaded collar
- Withstands full dead-end loads
- Corrosion resistant standpipe has power tech treatment
Specifications
ApplicationPulling and Tensioning of Cables, Anchor Bolts and Forcing Screws
Base Width6-1/4 in
Load Capacity60 ton
Maximum Height12-1/4 in
Minimum Height9-1/4 in
Piston Stroke3 in
SeriesRH Series
TypeCenter Hole Spring-Return Single-Acting
Additional Information
IncludesModel 9796 3/8 in NPTF Female Half Coupler, Removable Carrying Handle
Standards/ApprovalANSI/ASME B30.1|CE Certified
Instruction/installation Manual
