Power Team SPX RH206

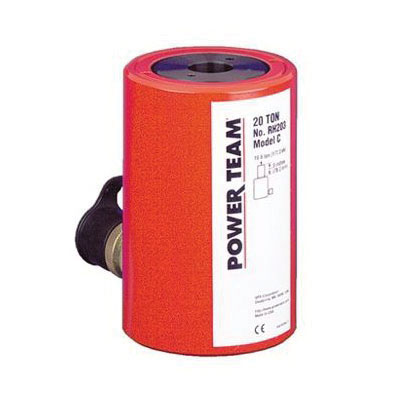

Power Team RH206 RH Series Center Hole Spring-Return Single-Acting Hydraulic Cylinder, 20 ton Load, 12-1/8 in H Min, 18-1/8 in H Max, 6 in
Invoice description:
Cyl 20 Ton 6 Stroke Cyl 20 Ton 6 Stroke
Factory Order
Power Team Hydraulic Cylinder, Center Hole Spring-Return Single-Acting, Series: RH Series, 20 ton Load, 12-1/8 in Minimum Height, 18-1/8 in Maximum Height, 6 in Piston Stroke, 3-7/8 in Base Width
Features
- Interchangeable piston head inserts provide versatility of application
- 20 ton single-acting models feature threaded collar
- Withstands full dead-end loads
- Corrosion resistant standpipe has power tech treatment
Specifications
ApplicationPulling and Tensioning of Cables, Anchor Bolts and Forcing Screws
Base Width3-7/8 in
Load Capacity20 ton
Maximum Height18-1/8 in
Minimum Height12-1/8 in
Piston Stroke6 in
SeriesRH Series
TypeCenter Hole Spring-Return Single-Acting
Additional Information
IncludesModel 9796 3/8 in NPTF Female Half Coupler
Standards/ApprovalANSI/ASME B30.1|CE Certified
Instruction/installation Manual
