Power Team SPX RD8013

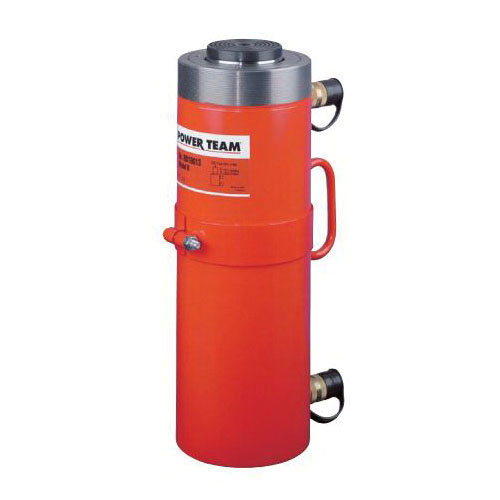

Power Team RD8013 RD Series Push/Pull Double-Acting Hydraulic Return Cylinder, 80 ton Push/44 ton Pull Load, 20-3/8 in H Min, 33-1/2 in H Max, 13-1/8 in
Invoice description:
Cyl 80 Ton 131/8 Stroke K Cyl 80 Ton 131/8 Strokek
Factory Order
Power Team Hydraulic Return Cylinder, Push/Pull Double-Acting, Series: RD Series, 80 ton Push/44 ton Pull Load, 20-3/8 in Minimum Height, 33-1/2 in Maximum Height, 13-1/8 in Piston Stroke, 5-3/4 in Base Width
Features
- High tonnage premium design for high cycle life

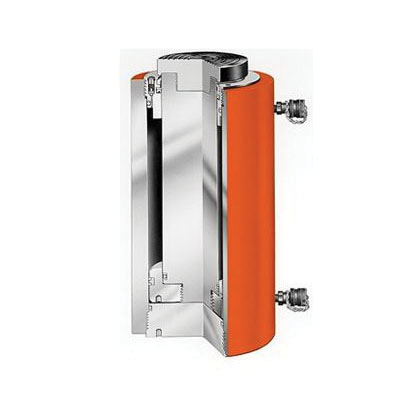

- Aluminum bronze overlay bearings provide long life, chrome plated piston rod resists corrosion

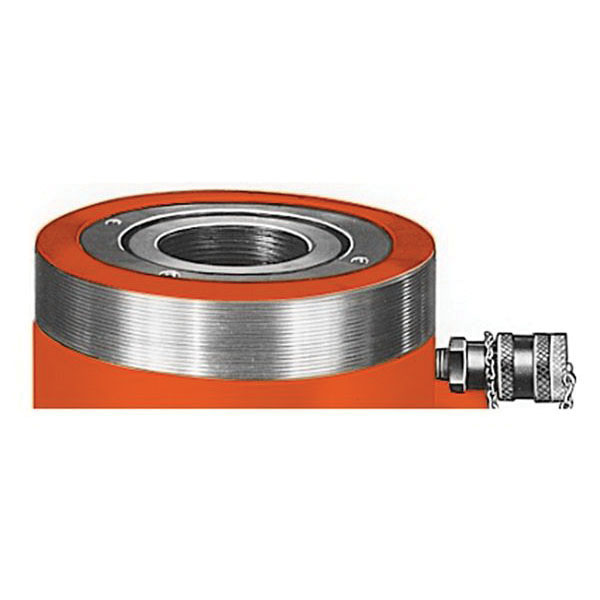

- Load cap snaps out to expose internal piston rod threads for pulling applications, threads withstand full tonnage
- Grooved ring pattern in load cap helps guard against load slippage
- Built-in safety relief valve prevents over-pressurization of the retract circuit
- Feature mounting holes and collar threads
Specifications

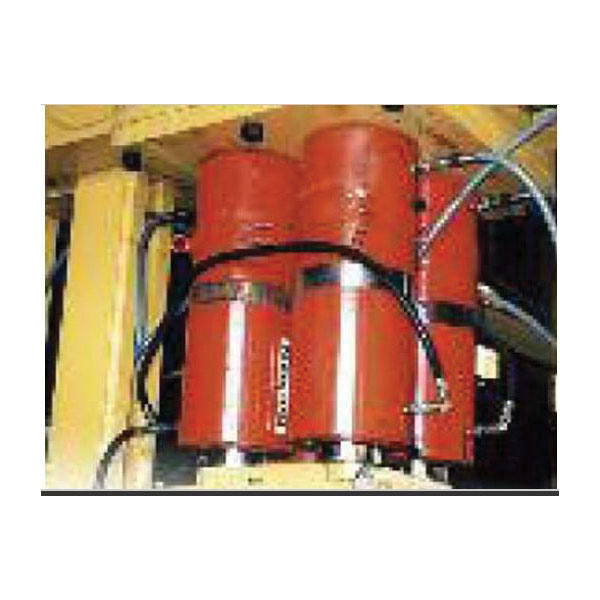

ApplicationBridge Lifting, Building Reconstruction, Shipyard, Utility and Mining Equipment Maintenance
Base Width5-3/4 in
Load Capacity80 ton Push/44 ton Pull
Maximum Height33-1/2 in
Minimum Height20-3/8 in
Piston Stroke13-1/8 in
SeriesRD Series
TypePush/Pull Double-Acting
Additional Information
Includes(2) 9796 3/8 in NPTF Female Half Coupler, Heavy-Duty Load Cap
Standards/ApprovalANSI/ASME B30.1|CE Certified
Line Drawing
