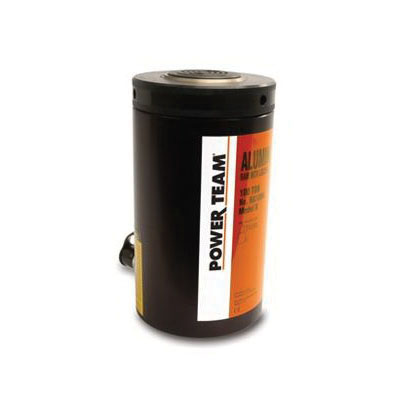

Power Team SPX RA556L
Power Team RA556L RAL Spring-Return Single-Acting Hydraulic Cylinder With Locking Collar, 55 ton Load, 12-1/2 in H Min, 18-5/8 in H Max, 6-1/8 in
Invoice description:
Cyl 55 Ton 6 Stroke Cyl 55 Ton 6 Stroke
Factory Order
Power Team Hydraulic Cylinder, Spring-Return Single-Acting, Series: RAL, 55 ton Load, 12-1/2 in Minimum Height, 18-5/8 in Maximum Height, 6-1/8 in Piston Stroke, 5-1/4 in Base Width
Features

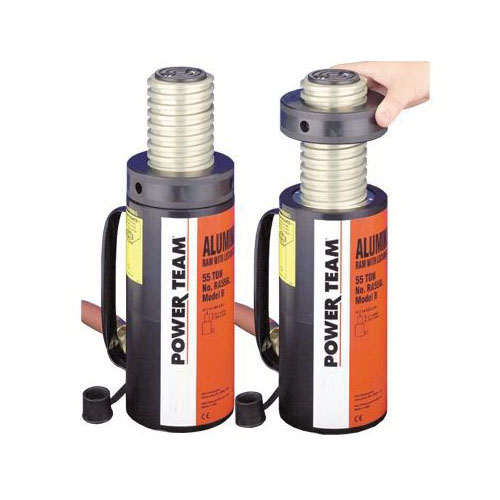

- Positive mechanical lock to support load
- Supports lifted load for extended periods of time with hydraulic pressure released
- At half the weight of steel cylinders of comparable capacity, aluminum cylinders are ideal when portability is a key factor
Specifications
Base Width5-1/4 in
Load Capacity55 ton
Maximum Height18-5/8 in
Minimum Height12-1/2 in
Piston Stroke6-1/8 in
SeriesRAL
TypeSpring-Return Single-Acting
Additional Information
IncludesCarrying Handle and 3/8 in NPTF Female Half Coupler
Standards/ApprovalANSI/ASME B30.1|CE Certified
