Power Team SPX R10010L

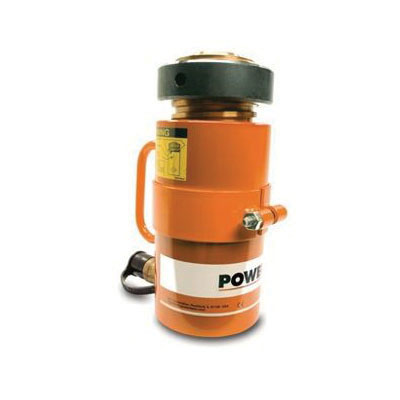

Power Team R10010L RL Series Load Return Single-Acting Hydraulic Cylinder, 100 ton Load, 15-1/4 in H Min, 25-1/4 in H Max, 10 in
Invoice description:
Cyl 100 Ton 10 Stroke Cyl 100 Ton 10 Stroke
Factory Order
Power Team Hydraulic Cylinder, Load Return Single-Acting, Series: RL Series, 100 ton Load, 15-1/4 in Minimum Height, 25-1/4 in Maximum Height, 10 in Piston Stroke, 6-1/2 in Base Width
Features
- Positive mechanical lock to support load
- Supports lifted load for extended periods of time with hydraulic pressure released
- Visible indicator band alerts when stroke limit is reached, overflow port (weep hole) stroke limiter prevents piston from being overextended
- All cylinders feature coated pistons to resist corrosion and abrasion
Specifications
Base Width6-1/2 in
Load Capacity100 ton
Maximum Height25-1/4 in
Minimum Height15-1/4 in
Piston Stroke10 in
SeriesRL Series
TypeLoad Return Single-Acting
Additional Information
Includes3/8 in NPTF Female Half Coupler, Locking Collar
Standards/ApprovalANSI/ASME B30.1|CE Certified
Instruction/installation Manual
