Power Team SPX PE464S-230

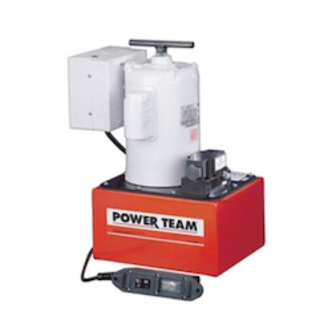

Power Team PE464S-230 Portable Electric Hydraulic Pump, 1-1/2 hp, 2 Stages, 590 cu-in Reservoir, 0 to 10000 psi Pressure
Factory Order
Power Team Electric Hydraulic Pump, Portable, Series: PE46, 2 Stage, 590 cu-in Reservoir, 1-1/2 hp, 0 to 10000 psi Pressure, 230 VAC, 25 A, 60 Hz Frequency, 3450 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 19-5/8 in Overall Height
Features
- Two speed high performance pump
- For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
- All equipped with a 10 ft (3.1 m) remote control except PE462S which has a 25 ft (7.6 m) remote control
- 24 V control circuits on all units with remote controls
Specifications
ApplicationFor under the roof maintenance and production applications
Amperage Rating25 A
Frequency Rating60 Hz
Horsepower1-1/2 hp
Number of Stages2
Overall Height19-5/8 in
Overall Length11-1/2 in
Overall Width9-1/2 in
Pressure Rating0 to 10000 psi
Reservoir Capacity590 cu-in
SeriesPE46
Speed3450 rpm
TypePortable
Voltage Rating230 VAC
Line Drawing
