Power Team SPX PE-NUT

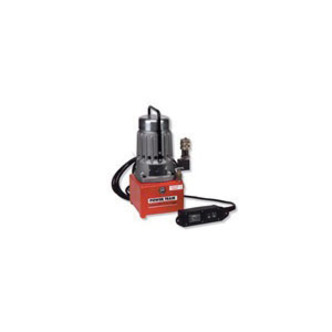

Power Team PE-NUT 2-Speed Electric Pump, 5/8 hp, 2 Stages, 93 cu-in Reservoir, 10000 psi Pressure

UNSPSC:
Manufacturer PN: PE-NUT
$12,011.41 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Pump, 2-Speed, Series: PE Series, 2 Stage, 93 cu-in Reservoir, 5/8 hp, 10000 psi Pressure, 115 VAC, 11 A, 50/60 Hz Frequency, 10000 rpm Speed, 14.38 in Overall Length, 6-1/2 in Overall Width, 8-1/4 in Overall Height

  • Features

  • 2-stage pump for rapid ram advance
  • Operational under low-line voltage conditions
  • Designed for use with spring-returned remote tools
  • High-pressure safety relief valve
  • Remote hand control with 10 ft cord
  • Carrying handle
  • Factory filled oil reservoir
  • Pressure matched quick-coupler supplied
  • Unique, intermittent duty pump
  • Piston-type high-pressure pump supercharged by a low-pressure pump

Specifications

ApplicationCrimping
Amperage Rating11 A
Frequency Rating50/60 Hz
Horsepower5/8 hp
Number of Stages2
Overall Height8-1/4 in
Overall Length14.38 in
Overall Width6-1/2 in
Pressure Rating10000 psi
Reservoir Capacity93 cu-in
SeriesPE Series
Speed10000 rpm
Type2-Speed
Voltage Rating115 VAC
