Power Team SPX PE464

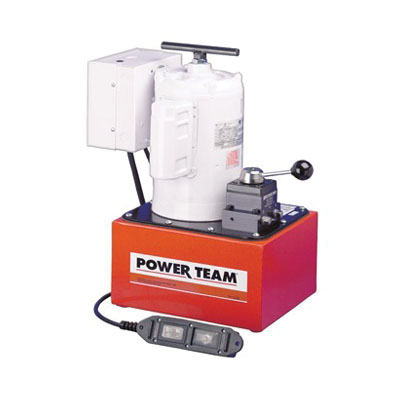

Power Team PE464 2-Speed Electric Pump, 1-1/2 hp, 2.5 gal Reservoir, 10000 psi Pressure

Invoice description: Pumpe 46 Cu In/min 115/2 30vac 60hz Pumpe 46 Cu In/min 115/230vac 60hz

UNSPSC: 40151500
Manufacturer PN: PE464
$9,396.16 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Pump, 2-Speed, Series: PE46, 2.5 gal Reservoir, 1-1/2 hp, 10000 psi Pressure, 115/230 VAC, 20 A, 60 Hz Frequency, 3450 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 19-5/8 in Overall Height

  • Features

  • 2-speed high performance pump
  • Noise level of 77 to 81 dBA
  • All equipped with a 10 foot remote control
  • 24 V control circuit on all units with remote control
  • CSA rated for intermittent duty

Specifications

ApplicationFor use with double-acting multi single-acting cylinders
Amperage Rating20 A
Frequency Rating60 Hz
Horsepower1-1/2 hp
Overall Height19-5/8 in
Overall Length11-1/2 in
Overall Width9-1/2 in
Pressure Rating10000 psi
Reservoir Capacity2.5 gal
SeriesPE46
Speed3450 rpm
Type2-Speed
Voltage Rating115/230 VAC

Additional Information

IncludesModel 9500 Double-Acting Valve and Metal Reservoir
Standards/ApprovalCSA Certified
