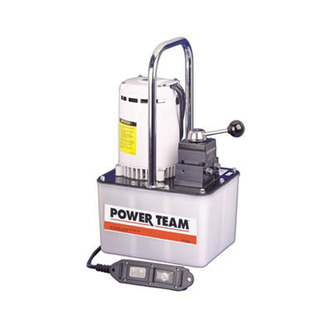

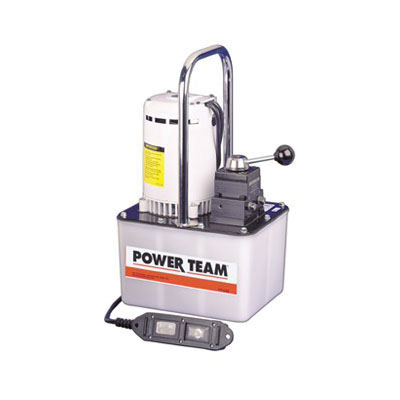

Power Team SPX PE174

Power Team PE174 2-Speed Electric Hydraulic Pump, 1/2 hp, 2 gal Reservoir, 10000 psi Pressure

Invoice description: Pmpe 17 Cu In/min 110/11 5v 50/60hz S/d Pmpe 17 Cu In/min 110/115v 50/60hz S/d

UNSPSC: 40151500
Manufacturer PN: PE174
$5,510.63 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Hydraulic Pump, 2-Speed, Series: PE17, 2 gal Reservoir, 1/2 hp, 10000 psi Pressure, 110/115 VAC, 50/60 Hz Frequency, 3450 rpm Speed, 11-3/8 in Overall Length, 9-1/4 in Overall Width, 8-1/2 in Overall Height

  • Features

  • For intermittent duty, starts under full load
  • Low amperage draw, small generators and low amperage circuits can be used as power source
  • Extremely quiet noise level (67 to 81 dBA)

Specifications

ApplicationMaintenance and Construction Applications Upto 55 ton, use with single/double-acting cylinders
Frequency Rating50/60 Hz
Horsepower1/2 hp
Overall Height8-1/2 in
Overall Length11-3/8 in
Overall Width9-1/4 in
Pressure Rating10000 psi
Reservoir Capacity2 gal
SeriesPE17
Speed3450 rpm
Type2-Speed
Voltage Rating110/115 VAC

Additional Information

IncludesThermoplastic Reservoir, 9500 Double-Acting 4-Way Valve, 1-Phase Thermal Protected Induction Motor, 10 ft Remote Control Cord
