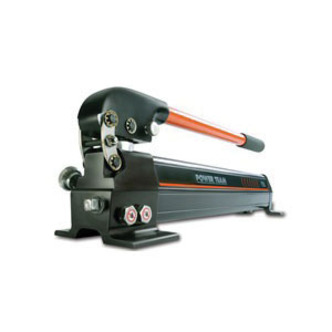

Power Team SPX P19L
Power Team P19L P Series Manually Operated 2-Speed Hydraulic Pump, 29 cu-in Tank
Invoice description:
Hand Pump 2spd Lt Wt .07 6.305 Cu In Hand Pump 2spd Lt Wt .076.305 Cu In
Factory Order
Power Team Hydraulic Pump, Manually Operated 2-Speed, Series: P Series, 29 cu-in Tank, Oil Fluid, 325 to 10000 psi Pressure, 3/8 in NPTF Port, 13-11/16 in Overall Length, 4-1/8 in Overall Width, 5-1/2 in Overall Height
Features
- All metal construction wont burn through in welding environments
- 2-speed reduces handle strokes so you work faster and easier
- Formed metal handle provides less flex and reduces operator fatigue
- Convenient fill port allows pumps to be filled in a horizontal or vertical position
- Relief valve inboard of check valve prevents loads from drifting down
- Large valve knob gives added control for slowly metering loads down
- More usable oil volume - use with larger or longer stroke cylinders
- True unloading valve set for 850 psi (59 bar) provides more efficiency and lower handle force
- Link design reduces handle effort by 40%
- Durable aluminum reservoir, manifold, and end cap
Specifications
ApplicationFor use with single-acting cylinders
Fluid TypeOil
Overall Height5-1/2 in
Overall Length13-11/16 in
Overall Width4-1/8 in
Port Size3/8 in NPTF
Pressure Rating325 to 10000 psi
SeriesP Series
Tank Capacity29 cu-in
TypeManually Operated 2-Speed
Additional Information
Includes2-Way Valve
Line Drawing
