Power Team SPX P159D

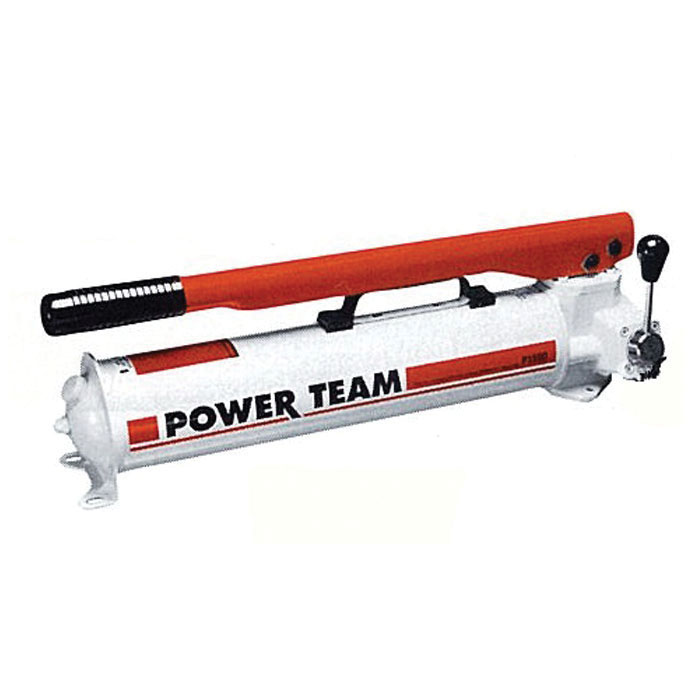

Power Team P159D P Series Manually Operated 2-Speed Hydraulic Pump, 152 cu-in Tank

Invoice description: Hand Pump 2spd .1602.6 C U In/stroke Hand Pump 2spd .1602.6 Cu In/stroke

UNSPSC: 40151500
Manufacturer PN: P159D
$2,267.87 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Pump, Manually Operated 2-Speed, Series: P Series, 152 cu-in Tank, Oil Fluid, 325 to 10000 psi Pressure, 3/8 in NPTF Port, 22-3/4 in Overall Length, 3-7/8 in Overall Width, 7-3/4 in Overall Height

  • Features

  • Rugged all metal construction for strength and durability that wont burn through in welding environments
  • Heavy-duty, formed metal handle provides less flex, and less operator fatigue than round or composite handles
  • Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position
  • Fill cap seal acts as safety valve to prevent over-pressurizing of reservoir
  • Relief valve inboard of check valve prevents loads from drifting down
  • Large valve knob gives added control for slowly metering loads down

Specifications

ApplicationFor use with double-acting cylinders
Fluid TypeOil
Overall Height7-3/4 in
Overall Length22-3/4 in
Overall Width3-7/8 in
Port Size3/8 in NPTF
Pressure Rating325 to 10000 psi
SeriesP Series
Tank Capacity152 cu-in
TypeManually Operated 2-Speed

Additional Information

Includes4-Way Valve
