Power Team SPX 9520

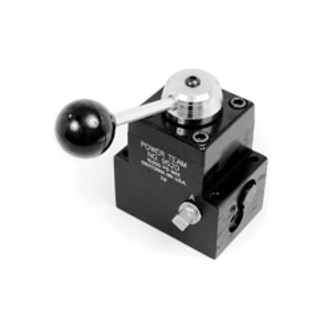

Power Team 9520 Manual Tandem Center Pump Mounted Valve, 3/8 in NPTF Port, 10000 psi Pressure, 5 cu-ft/min Flow Rate, 3-Way Ports/Ways, Steel Body
Invoice description:
Valve Pm Manual 3w 3p Ta Ndem Ctr Valve Pm Manual 3w 3p Tandem Ctr
UPC: 662536252638
UNSPSC:
40141608
Manufacturer PN: 9520
$1,158.49 EA
Factory OrderEstimated to ship in 7 days
Power Team Pump Mounted Valve, Manual Tandem Center, 3/8 in NPTF Port, 10000 psi Pressure, 5 cu-ft/min Flow Rate, 3-Way Ports/Ways, Media: Oil, Lever Operated Actuation, Steel Body
Features
- Actuation - lever operated, detent positioned
- Functions - advance, hold and return
- When shifted to return position, pump and cylinder return oil through their own separate return lines, allowing faster retraction of piston, the Posi-Check feature guards against pressure loss when shifting from advance to hold position
Specifications
ApplicationFor use with single acting cylinder
Actuation TypeLever Operated
Body MaterialSteel
Flow Rate5 cu-ft/min
MediaOil
Number of Ports/Ways3-Way
Port Size3/8 in NPTF
Pressure Rating10000 psi
TypeManual Tandem Center
