Power Team SPX 9020A

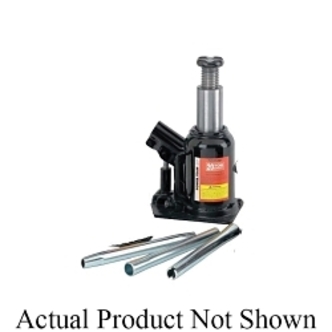

Power Team 9020A Low Profile Bottle Jack, 20 ton Load, 7-1/8 in H Min, 12 in H Max, 3-3/8 in, 1-9/16 in L Screw

Invoice description: Bottle Jack 20 Ton 33/8 Stroke Bottle Jack 20 Ton 33/8 Stroke

UPC: 662536181211
UNSPSC: 24101612
Manufacturer PN: 9020A
$545.65 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Bottle Jack, Low Profile, 20 ton Load, 7-1/8 in Minimum Height, 12 in Maximum Height, 3-3/8 in Piston Stroke, 1-9/16 in Screw Length, 7-3/16 in Base Width, 5-1/16 in Base Length

  • Features

  • All the quality, features and lifting capacity of the standard jacks in short form
  • The 12 ton and 20 ton models feature screw extensions for added versatility
  • All jacks operate both vertically and horizontally for use in a variety of lifting, pushing and spreading applications

Specifications

ApplicationFor lower clearance jobs
Base Length5-1/16 in
Base Width7-3/16 in
Load Capacity20 ton
Maximum Height12 in
Minimum Height7-1/8 in
Piston Stroke3-3/8 in
Screw Length1-9/16 in
TypeLow Profile

Additional Information

IncludesCarry Handle
Standards/ApprovalASME B30.1
