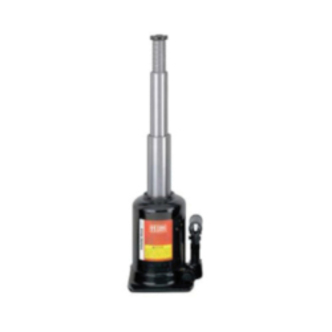

Power Team SPX 9011X

Power Team 9011X Telescoping Side Pump Bottle Jack, 11 ton Load, 7-7/8 in H Min, 20-7/8 in H Max, 10.333 in, 2-11/16 in L Screw

Invoice description: Bottle Jack 11 Ton 10.3 Stroke Bottle Jack 11 Ton 10.3 Stroke

UPC: 662536364409
UNSPSC: 24101612
Manufacturer PN: 9011X
$806.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Bottle Jack, Telescoping Side Pump, 11 ton Load, 7-7/8 in Minimum Height, 20-7/8 in Maximum Height, 10.333 in Piston Stroke, 2-11/16 in Screw Length, 6-5/16 in Base Width, 6-1/2 in Base Length

  • Features

  • Telescoping jacks offer all of the quality features and capabilities of the standard bottle jack line with a bonus, the super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift and more in most applications, the user can place the jack once and complete the lift
  • Feature a unique beveled base that allows the jack to "follow" the load laterally as it is raised, greatly reducing side-loading of the piston

Specifications

ApplicationForklift Maintenance or Machine Lifting
Base Length6-1/2 in
Base Width6-5/16 in
Load Capacity11 ton
Maximum Height20-7/8 in
Minimum Height7-7/8 in
Piston Stroke10.333 in
Screw Length2-11/16 in
TypeTelescoping Side Pump

Additional Information

Standards/ApprovalASME B30.1
