Power Team SPX 9006X

Power Team 9006X Telescoping Side Pump Bottle Jack, 6 ton Load, 8-1/2 in H Min, 20-1/2 in H Max, 12 in

Invoice description: Bottle Jack 6 Ton 12 St Roke Bottle Jack 6 Ton 12 Stroke

UPC: 662536364393
UNSPSC: 24101612
Manufacturer PN: 9006X
$757.48 EA
Factory Order
Estimated to ship in 7 days
QTY:

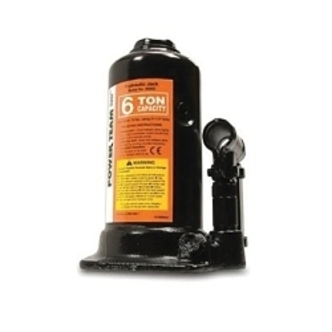

Power Team Bottle Jack, Telescoping Side Pump, 6 ton Load, 8-1/2 in Minimum Height, 20-1/2 in Maximum Height, 12 in Piston Stroke, 4-3/4 in Base Width, 5-1/4 in Base Length

  • Features

  • Telescoping jacks offer all of the quality features and capabilities of the standard bottle jack line with a bonus, the super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift and more in most applications, the user can place the jack once and complete the lift
  • Feature a unique beveled base that allows the jack to "follow" the load laterally as it is raised, greatly reducing side-loading of the piston

Specifications

ApplicationForklift Maintenance or Machine Lifting
Base Length5-1/4 in
Base Width4-3/4 in
Load Capacity6 ton
Maximum Height20-1/2 in
Minimum Height8-1/2 in
Piston Stroke12 in
TypeTelescoping Side Pump

Additional Information

Standards/ApprovalASME B30.1

Documents
