Midland Industries MIDM 940134

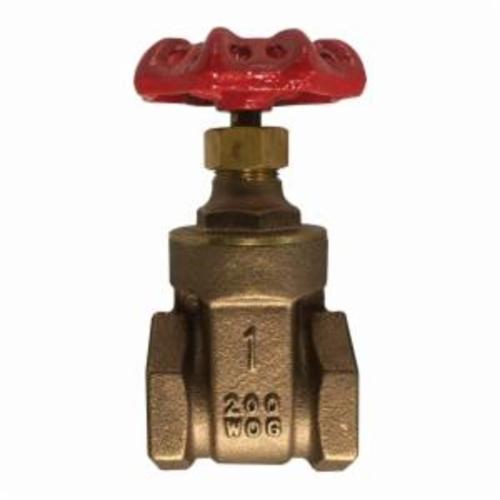

Midland Industries 940134 Gate Valve, 1 in Nominal, 11.5 TPI FNPT End Style, C37700 Forged Brass Body, Import

Invoice description: Valve 1 Fipxfip Full Por T

UNSPSC: 40141613
Manufacturer PN: 940134
$40.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Midland Industries Gate Valve, 1 in Nominal Size, 11.5 TPI FNPT, 200 psi WOG/125 psi WSP, Full Port, Media: Cold Water, Oil, Gas and Saturated Steam, 1.984 in Inlet to Outlet Length, 3.661 in Top to Inlet Center, C37700 Forged Brass Body, Brass/PTFE Trim, NBR Rubber Seat, 2.283 in Hand Wheel Diameter, Import

  • Features

  • Full-port design for a better water flow
  • Cast iron handle
  • Good for diesel fuel
  • Solid wedge
  • Screw-In bonnet
  • Non-Rising stem

Specifications

Body MaterialC37700 Forged Brass
Domestic/ImportImport
End Style11.5 TPI FNPT
Hand Wheel Diameter2.283 in
Inlet to Outlet Length1.984 in
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size1 in
Port TypeFull
Pressure Rating200 psi WOG/125 psi WSP
Softgoods MaterialNBR Rubber Seat
Top to Inlet Center3.661 in
Trim MaterialBrass/PTFE

Additional Information

Standards/ApprovalANSI B1.20.1
Country of OriginID
