Midland Industries MIDM 940136

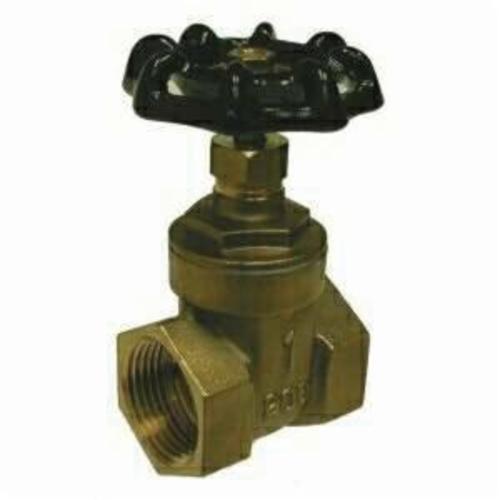

Midland Industries 940136 Gate Valve, 1-1/2 in Nominal, 11.5 TPI FNPT End Style, C37700 Forged Brass Body, Import

Invoice description: Valve 1-1/2 Fipxfip Full Pt

UNSPSC: 40141613
Manufacturer PN: 940136
$94.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Gate Valve, 1-1/2 in Nominal Size, 11.5 TPI FNPT, 200 psi WOG/125 psi WSP, Full Port, Media: Cold Water, Oil, Gas and Saturated Steam, 2.283 in Inlet to Outlet Length, 4.98 in Top to Inlet Center, C37700 Forged Brass Body, Brass/PTFE Trim, NBR Rubber Seat, 3.11 in Hand Wheel Diameter, Import

  • Features

  • Full-port design for a better water flow
  • Cast iron handle
  • Good for diesel fuel
  • Solid wedge
  • Screw-In bonnet
  • Non-Rising stem

Specifications

Body MaterialC37700 Forged Brass
Domestic/ImportImport
End Style11.5 TPI FNPT
Hand Wheel Diameter3.11 in
Inlet to Outlet Length2.283 in
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size1-1/2 in
Port TypeFull
Pressure Rating200 psi WOG/125 psi WSP
Softgoods MaterialNBR Rubber Seat
Top to Inlet Center4.98 in
Trim MaterialBrass/PTFE

Additional Information

Standards/ApprovalANSI B1.20.1
Country of OriginID
