JET JET 354170

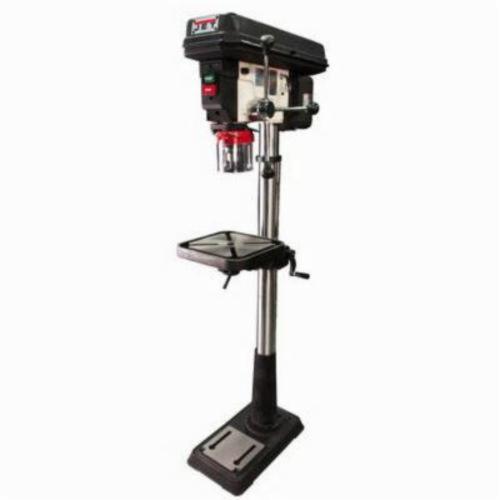

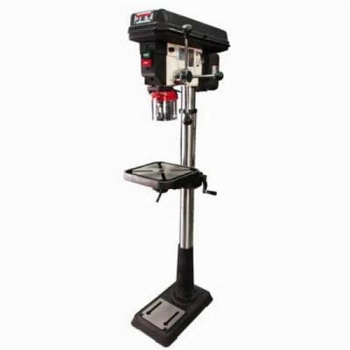

JET JT9-354170 Floor Drill Press, 1.5 hp, 115/230 VAC, 3/4 in Chuck, 20 in Swing, 18-1/2 in L x 16 in W Table

UPC: 662755104121
UNSPSC: 23241801
Manufacturer PN: JT9-354170
$2,649.16 EA
In stock (1)
QTY:


JET, JT9-354170, Floor Drill Press, 3/4 in Chuck, 20 in Swing, MT-3 Spindle Taper, 4-5/8 in Spindle Travel, 150 to 4200 rpm Spindle Speed, 12 Spindle Speed, 29-1/8 in Spindle to Table Distance, 10 in Spindle to Column Distance, 18-1/2 in L x 16 in W Table, 80 lb Table Load, 45 deg Table Tilt, 13-3/4 x 22-3/4 in Base, 3-3/8 in Diameter Column, 1.5 hp, 115/230 VAC, 18 A, 67 in H x 33-1/2 in W x 18-1/2 in D Dimensions

  • Features

  • Hinged metal belt and pulley cover
  • Quick adjustment motor mount for rapid changing of spindle speeds
  • Rotating, 45 deg tilting, crank operated worktable with release clamp
  • On/off switch located on front of drill press head
  • 1/2 in diameter external depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Spindle is supported by high quality bearings
  • Telescoping safety spindle guard
  • 1 in cast iron and 3/4 in mild steel drilling capacity
  • 46-3/4 in spindle distance to base

Specifications

Amperage Rating18 A
Base Dimensions13-3/4 x 22-3/4 in
Chuck Size3/4 in
Column Diameter3-3/8 in
Dimensions67 in H x 33-1/2 in W x 18-1/2 in D
Horsepower1.5 hp
Number of Spindle Speeds12
Spindle Speed150 to 4200 rpm
Spindle TaperMT-3
Spindle to Column Distance10 in
Spindle to Table Distance29-1/8 in
Spindle Travel4-5/8 in
Swing20 in
Table Load Capacity80 lb
Table Size18-1/2 in L x 16 in W
Table Tilt45 deg
Voltage Rating115/230 VAC
