JET JET 716250

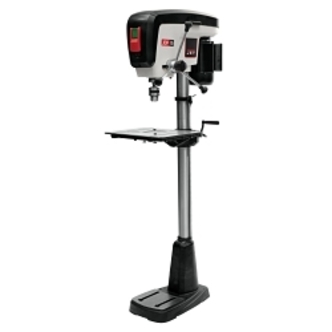

JET JT9-716250 Floorstanding Drill Press, 3/4 hp, 115 V, 5/8 in Chuck, 15 in Swing, 12-1/2 in L x 17 in W Table

Invoice description: Drill Press 15" 3/4hp Fl Oor Standing

UPC: 731325424270
UNSPSC: 23241801
Manufacturer PN: JT9-716250
$2,125.90 EA
Factory Order
Estimated to ship in 10 days
QTY:


JET, JT9-716250, Drill Press, Floorstanding, 5/8 in Chuck, 15 in Swing, MT-2/JT3 Spindle Taper, 3-1/8 in Spindle Travel, 210 to 3500 rpm Spindle Speed, 16 Spindle Speed, 30-1/2 in Spindle to Table Distance, 12-1/2 in L x 17 in W Table, 66 lb Table Load, +/-45 deg Table Tilt, 18-7/8 x 11-3/8 in Base, 2-3/4 in Diameter Column, 3/4 hp, 115 V, 9 FLA, 27 in L x 17 in W x 63-1/4 in H Dimensions

  • Features

  • Integrated depth stop makes repetitive drilling quick and easy
  • Large cast iron base provides stability
  • One handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Powered by an efficient 3/4 hp, 1 ph, 115 V TEFC motor and poly-v belt drive system
  • Replaceable MDF table insert
  • Table edge lip designed to make clamping easy
  • Xacta-X laser system easily identifies the drill center

Specifications

Amperage Rating9 FLA
Base Dimensions18-7/8 x 11-3/8 in
Chuck Size5/8 in
Column Diameter2-3/4 in
Dimensions27 in L x 17 in W x 63-1/4 in H
Horsepower3/4 hp
Number of Spindle Speeds16
Spindle Speed210 to 3500 rpm
Spindle TaperMT-2/JT3
Spindle to Table Distance30-1/2 in
Spindle Travel3-1/8 in
Swing15 in
Table Load Capacity66 lb
Table Size12-1/2 in L x 17 in W
Table Tilt+/-45 deg
TypeFloorstanding
Voltage Rating115 V

Additional Information

IncludesOne Handed Belt Tensioning System and (1) 12-1/2 x 17 in Large Work Table
Warranty5 Years
Standards/ApprovalCSA Certified|PROP65: This product can expose you
Country of OriginCN
