IDEAL IDEE 46-608

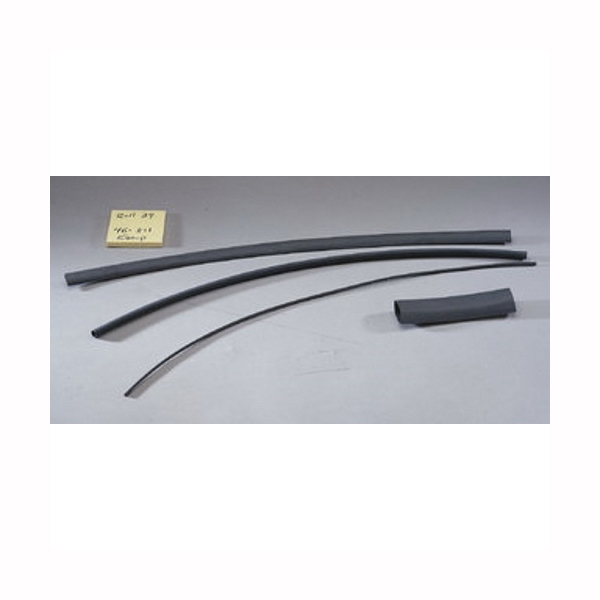

IDEAL® Thermo-Shrink® 46-608 Heat Shrink Tubing, 0.539 in ID Expanded, 0.252 in ID Recovered, 0.026 in THK Wall Recovered, 4 ft L, Polyolefin, Black
Invoice description:
Tube 1/2 Black Heatshrin K Gnrl Prpose 4'
UPC: 783250466085
UNSPSC:
39121723
Manufacturer PN: 46-608
$24.46 EA
Factory OrderEstimated to ship in 7 days
IDEAL® Thermo-Shrink® Heat Shrink Tubing, 600 VAC, 0.539 in Inner Dia Expanded, 0.252 in Inner Dia Recovered, Thin Wall, 0.026 in Wall Thickness Recovered, 4 to 1 AWG Wire, 2:1 Shrink, 4 ft Length, -55 to 125 deg C, 70 deg C Shrink, Polyolefin, Black
Features
- Polyolefin material electrically insulates and protects inline components, disconnect terminals and splices with its high strength and excellent resilience
- Use to bundle wires for very flexible light duty harnesses
- Highly flame-retardant and flexible
- Resistant to common fluids and solvents
- UV-resistant
- 30% eccentricity
- 600% elongation at break for ASTM D638 test method
- 350% elongation of break after aging for UL 224 test method
- No PBBs and PBBEs
- -55 deg C/4 hr cold blend test no cracking for UL 224 test method
Specifications
Voltage Rating600 VAC
Inner Diameter Expan0.539 in
Inner Diameter Recov0.252 in
Wall TypeThin
Wall Thickness Recov0.026 in
Wire Size4 to 1 AWG
Shrink Ratio2:1
Length4 ft
Additional Information
Standards/ApprovalRoHS Compliant|cULus Listed|UL 486D|UL 224|ASTM D6
Country of OriginCN
Rohs
