ILSCO FTZ 21748

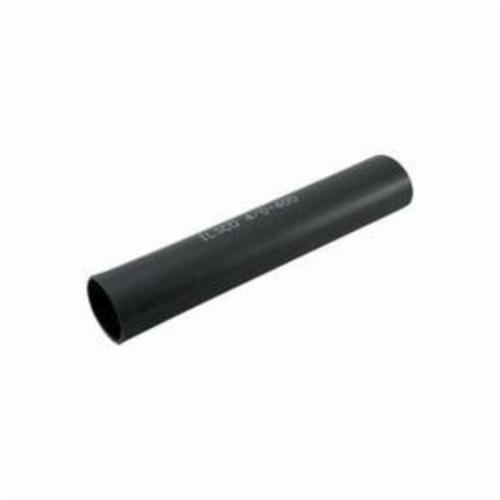

ILSCO ClearChoice 21748 Heat Shrink Tubing With Adhesive Liner, 2 in ID Expanded, 3/4 in ID Recovered, 0.155 in THK Wall Recovered, 48 in L, Polyolefin, Black
Invoice description:
2.00" Exp. Id. Black 48 Ength
UPC: 783669420456
UNSPSC:
39121723
Manufacturer PN: 21748
$46.51 EA
Factory OrderEstimated to ship in 7 days
ILSCO ClearChoice Heat Shrink Tubing, 600 VAC, 2 in Inner Dia Expanded, 3/4 in Inner Dia Recovered, Heavy Duty Wall, 0.155 in Wall Thickness Recovered, 500 to 1000 kcmil Wire, 3:1 Shrink, 48 in Length, -55 to 110 deg C, 120 deg C Shrink, Polyolefin, Black
Features
- Tin plated finish
- Flame-retardant
- Provides a wide range of coverage when used on connectors and cable
- Ensures reliability for insulating terminations and splices
- Melts to form intimate contact with part to seal out elements and produce a watertight seal suitable for above ground, direct burial and underwater applications
Specifications
ApplicationFor use with shrink wrap
ColorBlack
Inner Diameter Expanded2 in
Inner Diameter Recovered3/4 in
Length48 in
MaterialPolyolefin
Shrink Ratio3:1
Shrink Temperature120 deg C
Temperature Rating-55 to 110 deg C
Voltage Rating600 VAC
Wall Thickness Recovered0.155 in
Wall TypeHeavy Duty
Wire Size500 to 1000 kcmil
Additional Information
Standards/ApprovalCSA Certified|Military Specification 23053/15|UL 486D File No. E158587|eccn EAR99|PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Country of OriginUS
