Midland Industries MIDM 840475

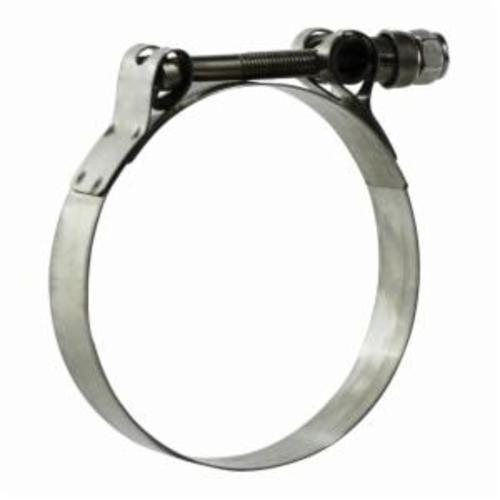

Midland Industries 840475 T-Bolt Clamp, 4-3/4 in Nominal, 4-17/32 to 4-13/16 in OD x 0.025 in THK, 301 Stainless Steel Band, Import
Invoice description:
4-13/16 Ss T-bolt Clamp 4-13/16 Ss T-bolt Clamp
Factory Order
Midland Industries T-Bolt Clamp, 4-3/4 in Nominal, 4-17/32 to 4-13/16 in Outside Dia, 0.025 in Thickness, 3/4 in Width, 75 in-lb, 301 Stainless Steel Band, 304 Stainless Steel Bolt, Import
Features
- Can be applied with a standard 7/16 in socket wrench
- Opens 1/16 in above and tightens 1/8 in smaller then nominal ID for a total of 3/16 in range for clamps sizes 150 through 250
- Nuts are self-locking
- Opens 1/16 in above and tightens 7/32 in smaller then nominal ID for clamps sizes 256 through 750
Specifications
ApplicationFor commercial and industrial markets including hose and ductwork connections for air, oil, water and other types of low pressure fluid lines
Band Material301 Stainless Steel
Bolt Material304 Stainless Steel
Domestic/ImportImport
Nominal Size4-3/4 in
Outside Diameter4-17/32 to 4-13/16 in
Thickness0.025 in
Torque Rating75 in-lb
Width3/4 in
Additional Information
Standards/ApprovalSAE J1508
Country of OriginCN
