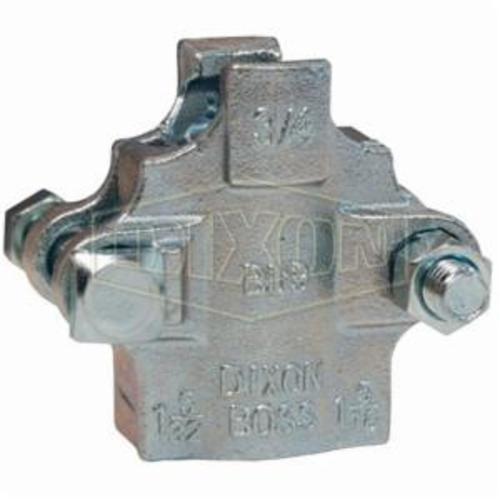

Dixon® 2-Bolt Clamp, Series: Boss™, 52/64 to 60/64 in Nominal, 1-3/4 in Length, 1-7/8 in Width, 6 ft-lb, Carbon Steel Band, Domestic
Features
- 2-bolt type clamp with 2 gripping fingers and 2 clamp sections
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss™ clamps are for single use only, once removed they are to be discarded
- Recommended for steam service up to 450 deg F
- Global investment cast carbon steel
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
Specifications
SeriesBoss™
Nominal Size52/64 to 60/64 in Hose
Length1-3/4 in
Width1-7/8 in
