HARRINGTON HARR CX003-10

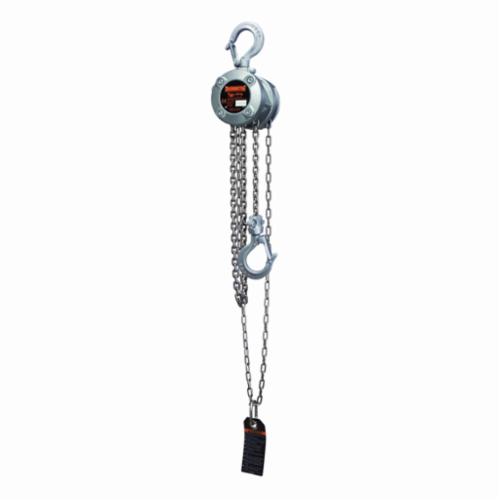

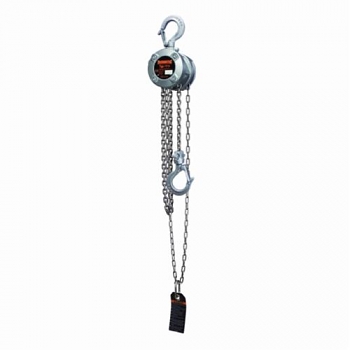

HARRINGTON CX003-10 CX Series Compact Low Headroom Mini Hand Chain Hoist, 0.25 ton Load, 10 ft H Lifting, 8-1/2 in Min Between Hooks, 0.8 in Hook Opening, 33 lb Rated
Invoice description:
Hoist Hand Chain 1/4 Ton
In stock
(1)
HARRINGTON Hand Chain Hoist, Compact Low Headroom Mini, Series: CX Series, 0.25 ton, 10 ft Lifting Height, 8-1/2 in Minimum Between Hooks, 0.8 in Hook Opening, 33 lb Pull to Lift, Weston Brake, 8.5 in L x 3.3 in W x 3.5 in D
Features
- Capacity 1/4 ton
- Compact, low headroom design for use anywhere
- Very low force is required to lift loads
- Effortless to transport, install and store
- Load limiter prevents lifting dangerous loads over rated capacity
- Aluminum body with steel frame provides superior strength
- Unique design is extremely compact and lightweight
- Very low force is required to lift load
- Metal chain guide allows smooth operation
- Effortless to transport, install and store
Specifications
ApplicationFor high or difficult to reach places such as duct installation, plumbing and heating, home automobile maintenance and crane repair
Brake TypeWeston
Dimensions8.5 in L x 3.3 in W x 3.5 in D
Hook Opening0.8 in
Lifting Height10 ft
Load Capacity0.25 ton
Minimum Between Hooks8-1/2 in
Pull to Lift Rated Load33 lb
SeriesCX Series
TypeCompact Low Headroom Mini
Additional Information
Standards/ApprovalASME B30.16 Requirements
Country of OriginJP
