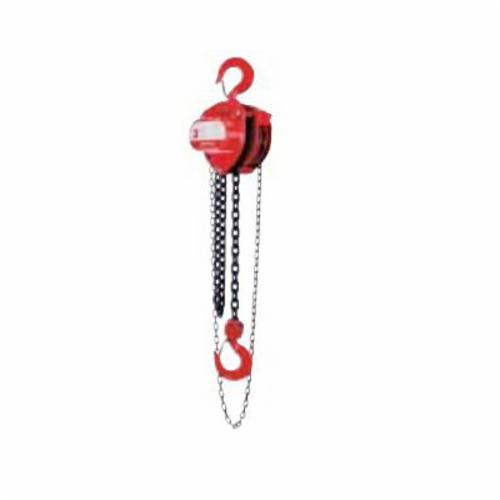

Coffing Hoists COFF LHH-1/2B-15

Coffing Hoists Hand Chain Hoist, Series: LHH, 0.5 ton, 15 ft Lifting Height, 10-1/4 in Minimum Between Hooks, 15/16 in Hook Opening, 55 lb Pull to Lift, Mechanical Load Brake, 11-1/2 in L x 5-7/16 in W x 5-7/16 in D

• Features

• Rated loads from 1/2 - 20 tons in stock with standard lifts of 10, 15 and 20 ft
• Standard hand chain drop is 2 ft less than lift
• Designed for portability and easy installation
• Compact gear housing provides low headroom
• Lubricated bearings and bushings, bearing-mounted opinions and heat treated spur gearing ensure smear and efficient operation with minimal effort
• Mechanical load brake engages instantly for precise load holding and positioning
• 360 deg swivel hooks with safety latches for positive load engagement
• Durable through hardened load chain providing added strength and wear resistance for greater chain life
• Stamped steel housing withstands rugged conditions
• Designed for easy inspection and maintenance

Specifications

Additional Information
