Hannibal HANN 630 1/8

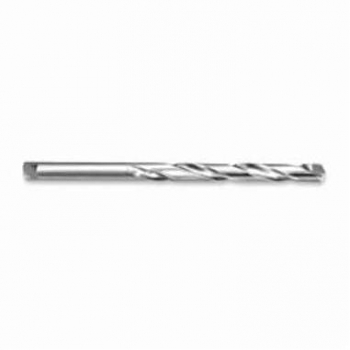

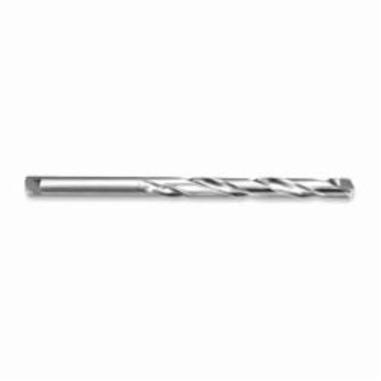

Hannibal Taper Length Drill, Material Specific, Series: DualDRIVE, 9/32 in Drill Size - Fraction, 0.2812 in Drill Size - Decimal Inch, 6-1/4 in Overall Length, 3-7/8 in Cutting Depth, Twist Flute, 3-7/8 in Flute Length, Straight/Tanged Shank, 118 deg Point, Standard Point, Carbide Cutting Edge, Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials

• Features

• Drills are end cutting tools used to produce holes when rapid removal of material is desired
• Twist drills are generally effective in holes up to 3 tool diameters deep - peck cycles should be used for deeper holes to achieve better chip evacuation
• Longer flute and overall lengths than jobbers length drills
• Carbide tip high temperature brazed to hardened tool steel body
• Smooth flutes for effective chip flow
• Precision ground to insure concentricity of tip and body
• The longer length of these drills increases their effective reach through drill bushings
• For use in ASA split sleeve drill drivers
