Hannibal HANN 60419

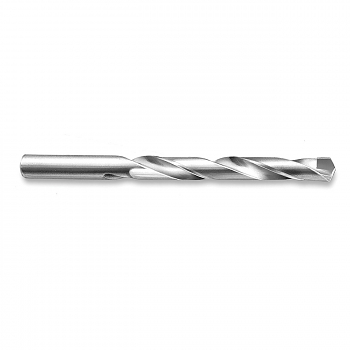

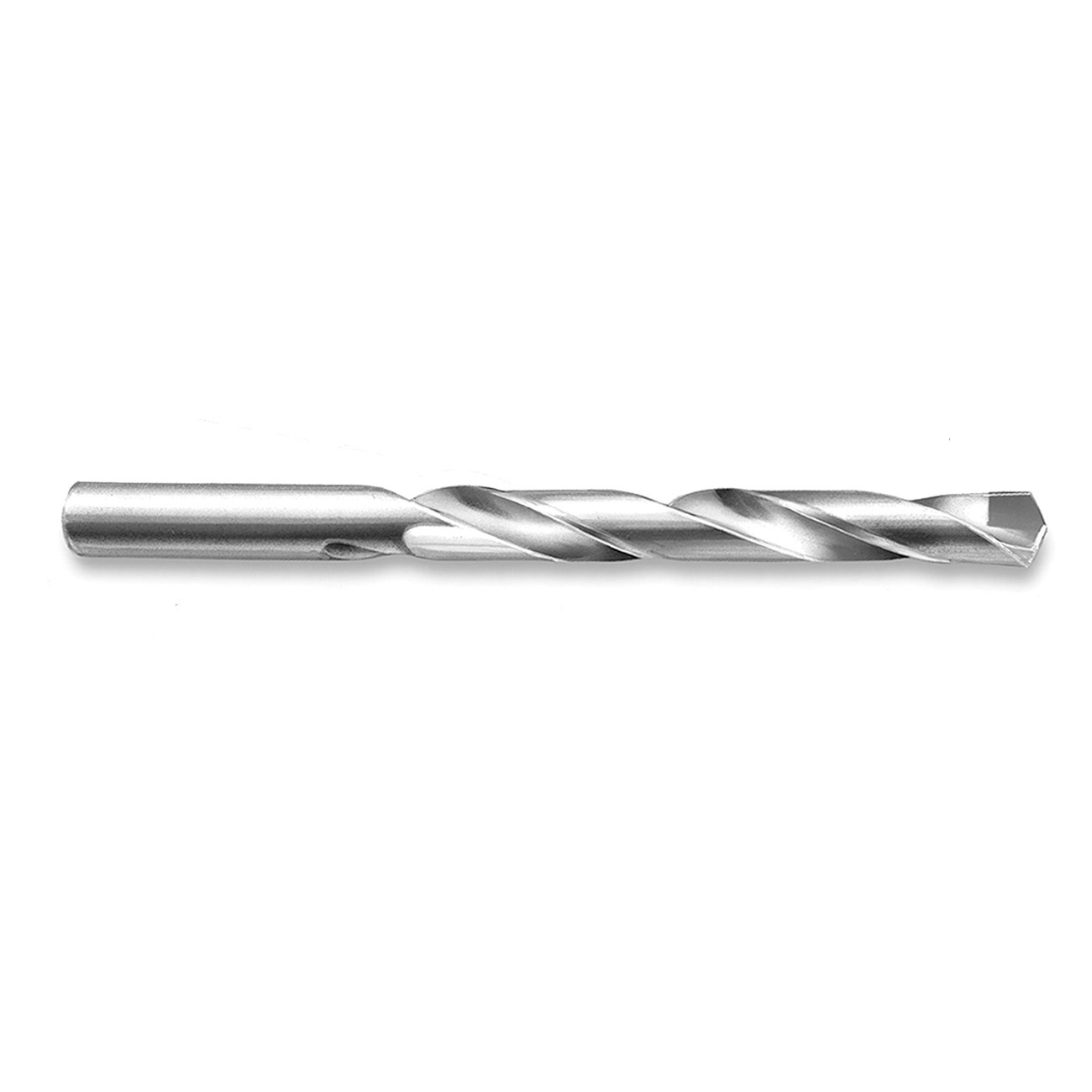

Hannibal 60419 600WLS Material Specific Jobber Length Drill Bit, S Drill - Letter, 0.348 in Drill - Decimal Inch, 118 deg Point, Tool Steel
Invoice description:
Letter S (.3480") Solid Car Bide Drill
In stock
(6)
Hannibal Jobber Length Drill Bit, Material Specific, Series: 600WLS, Imperial, S Drill - Letter, 0.348 in Drill - Decimal Inch, 4-7/8 in Overall Length, 3-1/2 in Cutting Depth, Spiral Flute, 3-1/2 in Flute Length, Flat/Tanged Shank, 118 deg Point, Standard Point, Carbide Cutting Edge, No Through Coolant, Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials
Features
- Drills are end cutting tools used to produce holes when rapid removal of material is desired
- Twist drills are generally effective in holes up to 3 tool diameters deep, peck cycles should be used for deeper holes to achieve better chip evacuation
- Carbide tip high temperature brazed to hardened tool steel body
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- The most popular carbide tipped drill will perform satisfactorily under a variety of conditions
Specifications
Applicable MaterialsCast Iron and Non-Ferrous Materials
Cutting Depth3-1/2 in
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.348 in
Drill Size - LetterS
Flute Length3-1/2 in
Flute TypeSpiral
MaterialTool Steel
Overall Length4-7/8 in
Point Angle118 deg
Point TypeStandard
Series600WLS
Shank TypeFlat/Tanged
Through Coolant (Yes/No)No
TypeMaterial Specific
Additional Information
Standards/ApprovalASME/ANSI B94.11M|NAS 907|USCTI Standard
Country of OriginUS
