Midland Industries MIDM 10068

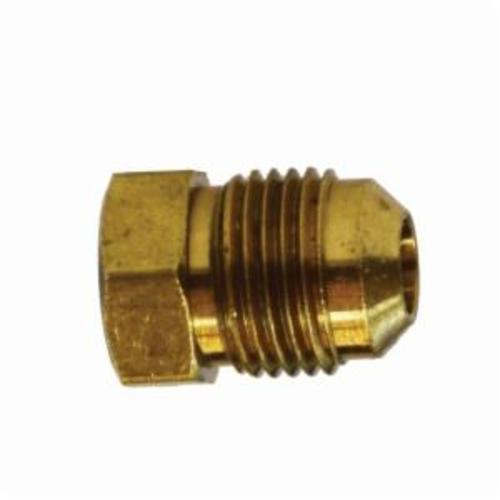

Midland Industries 10068 Plug, 5/8 in Nominal, SAE Flare Threaded UNF, Brass

Invoice description: Plug 5/8 Flr

UNSPSC: 40183106

Manufacturer PN: 10068

^$3.44 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Plug, Fitting/Connector Type: Plug, 5/8 in Nominal, SAE Flare Threaded UNF, 0.035 in Wall Thickness, 0.87 in Hex, 650 psi, -65 to 250 deg F, Brass, 1.19 in L

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions1.19 in L

End StyleSAE Flare Threaded UNF

Fitting/Connector TypePlug

Hex Size0.87 in

MaterialBrass

Nominal Size5/8 in

Pressure Rating650 psi

Temperature Rating-65 to 250 deg F

Thickness0.035 in Wall
