Midland Industries MIDM 10108

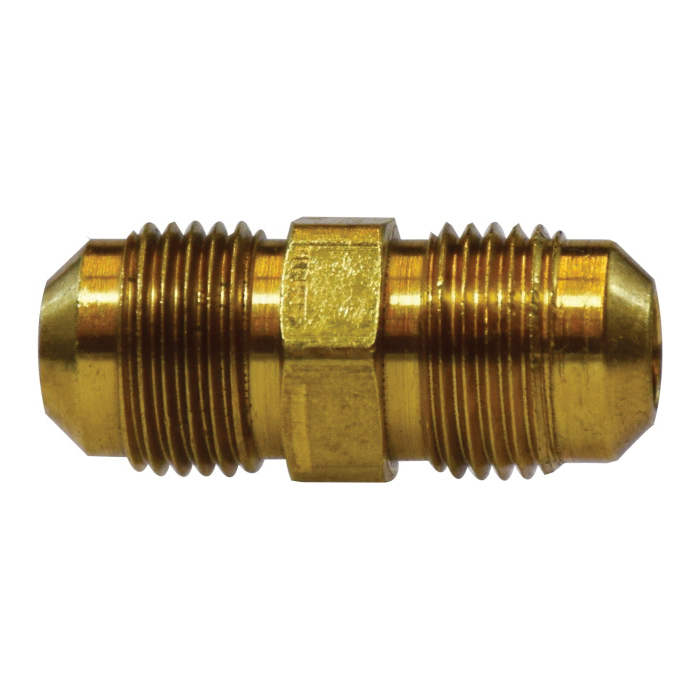

Midland Industries 10108 Union, 3/8 in Nominal, SAE Male Flare Threaded UNF, Brass

Invoice description: 3/8 Male Flare Union

UNSPSC: 40183103

Manufacturer PN: 10108

^$2.76 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Midland Industries Union, Fitting/Connector Type: Union, 3/8 in Nominal, SAE Male Flare Threaded UNF, 0.032 in Thickness, 0.62 in Hex, 1000 psi, -65 to 250 deg F, Brass, 1-1/2 in L

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions1-1/2 in L

End StyleSAE Male Flare Threaded UNF

Fitting/Connector TypeUnion

Hex Size0.62 in

MaterialBrass

Nominal Size3/8 in

Pressure Rating1000 psi

Temperature Rating-65 to 250 deg F

Thickness0.032 in
