Midland Industries MIDM 10066

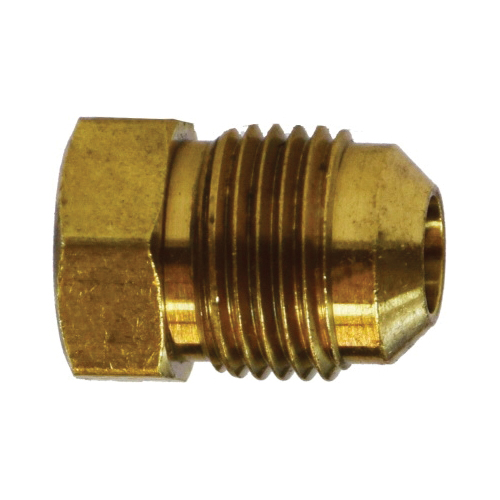

Midland Industries 10066 Plug, 3/8 in Nominal, SAE Flare Threaded UNF, Brass, Import

UNSPSC:
Manufacturer PN: 10066
$2.15 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Plug, Fitting/Connector Type: Plug, 3/8 in Nominal, SAE Flare Threaded UNF, 0.032 in Wall Thickness, 0.62 in Hex, 1000 psi, -65 to 250 deg F, Brass, 0.88 in L, Import

  • Features

  • Good vibration resistance, use long nut when greater vibration resistance is required
  • /- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.88 in L
Domestic/ImportImport
End StyleSAE Flare Threaded UNF
Fitting/Connector TypePlug
Hex Size0.62 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
Thickness0.032 in Wall

Documents
