YG-1 YG1 DH421109

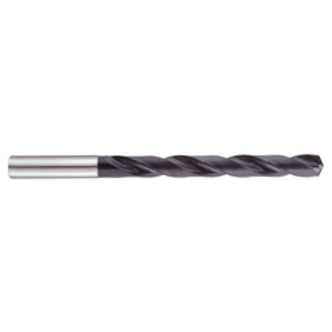

YG-1 DH421109 General Purpose Metric Extra Long Length Dream Drill, 10.9 mm Drill - Metric, 0.4291 in Drill - Decimal Inch, 1.9834 mm Drill Point, 162 mm OAL, Micrograin Carbide
Invoice description:
10.9 Mm Carbide Drill
Factory Order
YG-1 Extra Long Length Dream Drill, General Purpose Metric, Series: DH421, 10.9 mm Drill - Metric, 0.4291 in Drill - Decimal Inch, 162 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 114 mm Flute Length, 12 mm Shank, Straight Shank, 140 deg Point, 1.9834 mm Drill Point Length, Self-Centering Point, Right Hand Cutting Direction, Micrograin Carbide Cutting Edge, Micrograin Carbide, TiAlN Coated, Applicable Materials: Carbon Steel, Alloy Steel and Pre-Hardened Steel, Specifications Met: DIN 6537, Yes Through Coolant
Features
- Self-centering and chip breaking by R-thinning
- Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life
- Optimized flute shape for strength of drilling and smooth chip evacuation
Specifications
Applicable MaterialsCarbon Steel, Alloy Steel and Pre-Hardened Steel
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Carbide
Drill Point Length1.9834 mm
Drill Size - Decimal Inch0.4291 in
Drill Size - Metric10.9 mm
FinishTiAlN Coated
Flute Length114 mm
Flute TypeSpiral
MaterialMicrograin Carbide
Number of Flutes2
Overall Length162 mm
Point Angle140 deg
Point TypeSelf-Centering
SeriesDH421
Shank Size12 mm
Shank TypeStraight
Specifications MetDIN 6537
Through Coolant (Yes/No)Yes
TypeGeneral Purpose Metric
