YG-1 YG1 DH421050

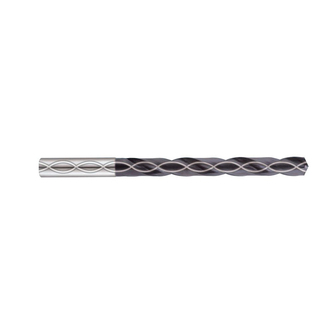

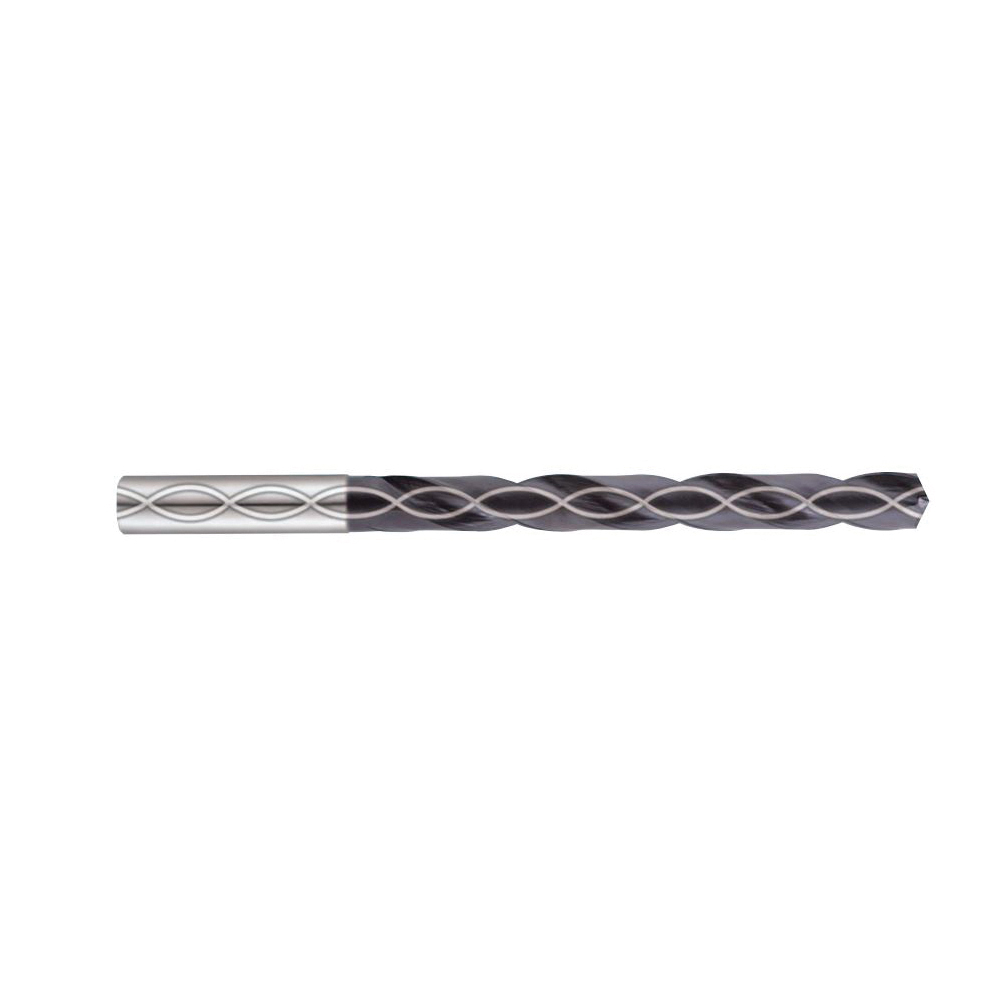

YG-1 DH421050 Extra Length Dream Drill, 5 mm Drill - Metric, 0.1969 in Drill - Decimal Inch, 95 mm OAL, Micrograin Carbide
Invoice description:
5.0 Mm Carbide Drill
Factory Order
YG-1 Extra Length Dream Drill, Series: DH421, 5 mm Drill - Metric, 0.1969 in Drill - Decimal Inch, 95 mm Overall Length, 8XD Cutting Depth, Spiral Flute, 57 mm Flute Length, 6 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting Direction, Micrograin Carbide Cutting Edge, Micrograin Carbide, TiAlN Coated, Applicable Materials: Abrasive Plastic, Chilled Cast Iron, Cast Iron, Cast Steel, Malleable Cast Iron, Non-Ferrous Heavy Metal, Non-Ferrous Light Metal and Steel, Specifications Met: DIN 6537, Yes Through Coolant
Features
- Self centering - center drilling is not required
- Excellent positioning - bushing is not necessary
- Special design - reaming is not required
Specifications
ApplicationGood Chip Removal and Powerful Drilling
Applicable MaterialsAbrasive Plastic, Chilled Cast Iron, Cast Iron, Cast Steel, Malleable Cast Iron, Non-Ferrous Heavy Metal, Non-Ferrous Light Metal and Steel
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Carbide
Drill Size - Decimal Inch0.1969 in
Drill Size - Metric5 mm
FinishTiAlN Coated
Flute Length57 mm
Flute TypeSpiral
MaterialMicrograin Carbide
Overall Length95 mm
Point Angle140 deg
Point TypeSplit
SeriesDH421
Shank Size6 mm
Shank TypeStraight
Specifications MetDIN 6537
Through Coolant (Yes/No)Yes
Additional Information
Standards/ApprovalDIN 6537
