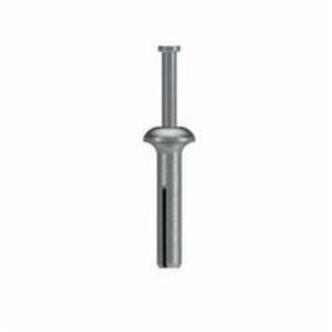

Simpson Strong-Tie SIMS ZN25114

Simpson Strong-Tie Drive Pin Anchor, Series: Nailon, 1/4 in Dia, 1-1/4 in Overall Length, Die-Cast Zamak 3 Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 5/8 in, 3/4 in, 1-1/2 in Minimum Embedment Depth, 160 lb/190 lb/265 lb at 3000 psi Shear Strength, 150 lb, 195 lb, 265 lb at 3000 psi Tensile, Zinc Plated

• Features

• Zinc Nailon anchors are low cost, easy-to-install anchors for applications under static loads
• Pin and head configuration designed to make anchor tamper resistant
• Carbon steel pin
• The allowable loads are based on a safety factor of 4
• 590 lb/780 lb/1050 lb ultimate tension load at 3000 psi for concrete
• 635 lb/765 lb/1050 lb ultimate shear load at 3000 psi for concrete
• 2600 to 2700 deg F freezing/melting point
