SGS SGS 63659

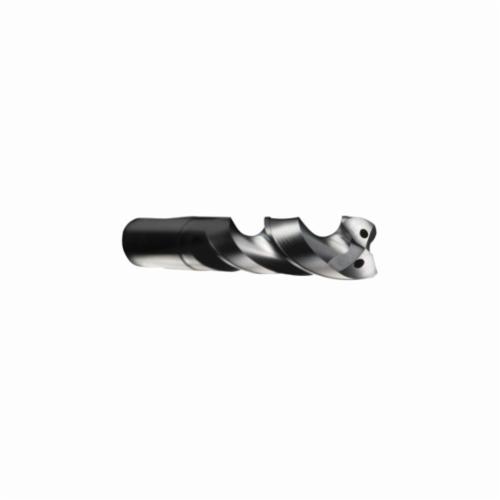

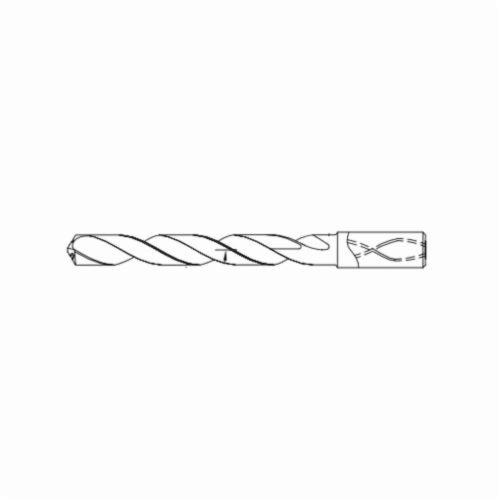

SGS 63659 Ice-Carb 140M Internal Coolant High Performance Drill, 11.4 mm Drill - Metric, 0.4488 in Drill - Decimal Inch, 162 mm OAL, Micro Grain Solid Carbide, AlTiN Coated
Invoice description:
Drill Solid Carbide 11.4 Mm D6544
UPC: 691781636597
UNSPSC:
23241605
Manufacturer PN: 63659
$425.62 EA
Factory OrderEstimated to ship in 14 days
SGS High Performance Drill, Internal Coolant, Series: Ice-Carb 140M, 11.4 mm Drill Size - Metric, 0.4488 in Drill Size - Decimal Inch, 162 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 114 mm Flute Length, 12 mm Shank, Common Normal Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting, Micro Grain Solid Carbide Cutting Edge, Micro Grain Solid Carbide, AlTiN Coated, Applicable Materials: Cast Iron, Steel, Stainless Steel and Titanium
Features
- Coolant through design
- High penetration 140 deg point geometry
- Engineered cutting edges
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Applicable MaterialsCast Iron, Steel, Stainless Steel and Titanium
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicro Grain Solid Carbide
Drill Size - Decimal Inch0.4488 in
Drill Size - Metric11.4 mm
FinishAlTiN Coated
Flute Length114 mm
Flute TypeSpiral
MaterialMicro Grain Solid Carbide
Number of Flutes2
Overall Length162 mm
Point Angle140 deg
Point TypeSelf-Centering
SeriesIce-Carb 140M
Shank Size12 mm
Shank TypeCommon Normal
TypeInternal Coolant
Additional Information
Standards/ApprovalDIN 6539
Country of OriginUS
